EFCO 2009

Page 33

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

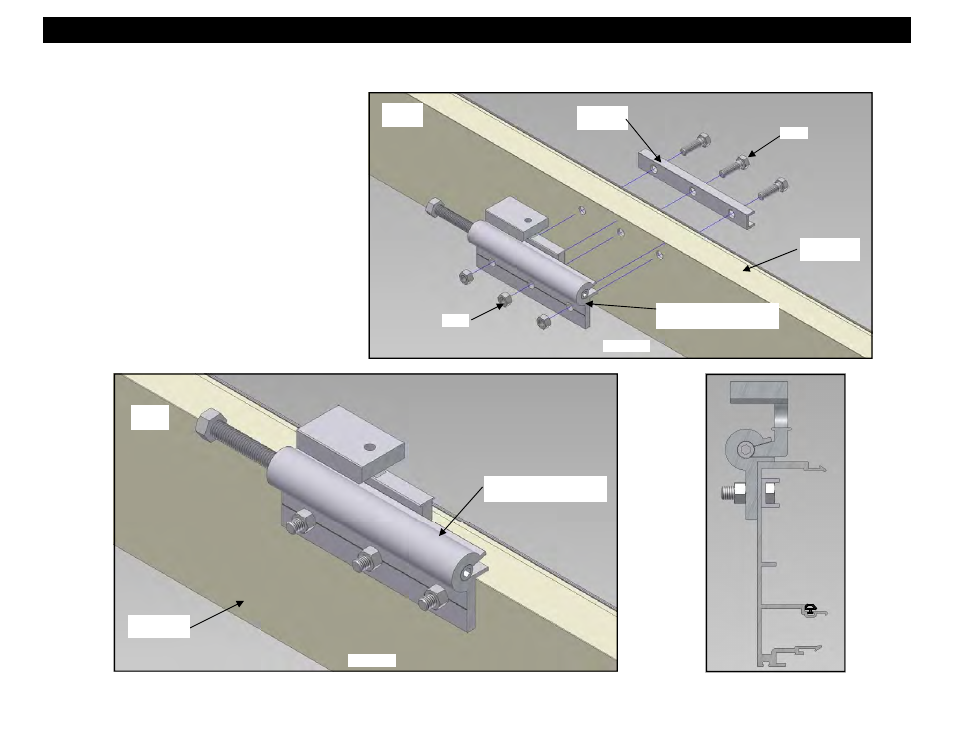

22. Apply the mullion anchor assemblies and the

FM17 bolt retainers to the unit vertical mullions.
Insert (3) 3/8”-16 bolts (M174) through the bolt
retainer and mullion.

23. Use either a right or left hand anchor assembly to

orient the top of the anchor and mullion as shown
in Figure 23 and the END VIEW, and insert the
anchor over the bolts.

24. Secure the anchor with (3) 3/8”-16 nylon insert

stop nuts (M172).

Section 3 - Unit Frame Assembly : A. Mullion Subassembly

END VIEW

Top of

Mullion

FM17 Bolt

Retainer

Figure 22

M172

Unit Vertical
Mullion

M174

Anchor Assembly
(KV07 shown, KV08 opp.)

Unit Vertical

Mullion

Top of

Mullion

Figure 23

Anchor Assembly
(KV07 shown, KV08 opp.)
