EFCO 2009
Page 23
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

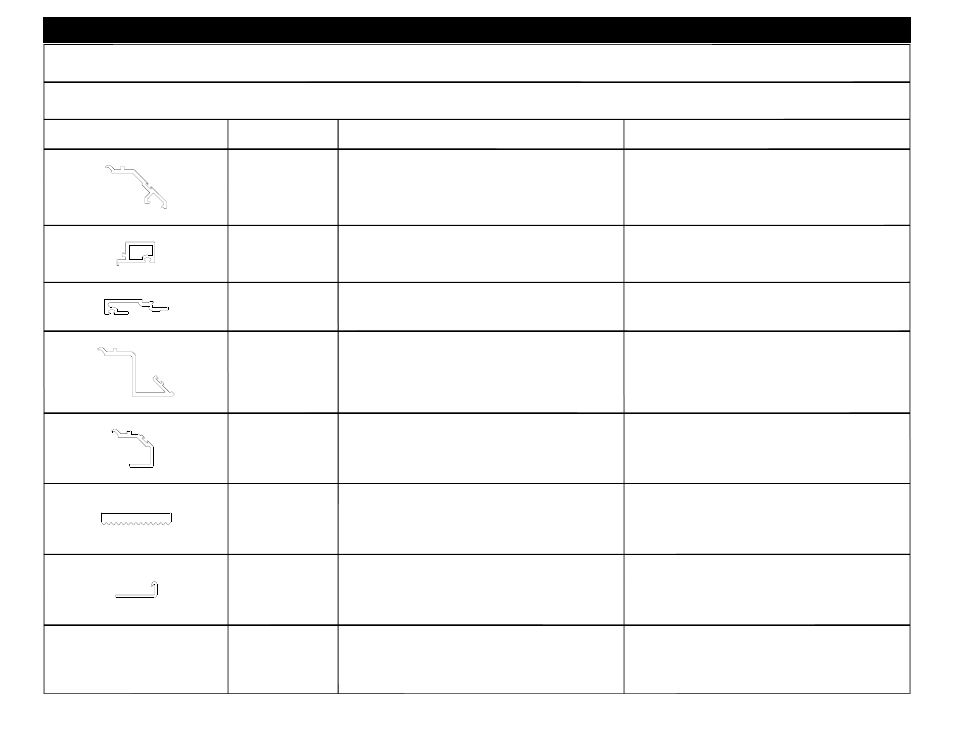

Section 2 - Parts Identification : G. Extrusions
Profile
Part #
Description
Tooling/Cut Length Formula
Extrusions
17E7
CAPTURED 90° I.S. CORNER MULLION
GLAZING ADAPTER
CUT TO LENGTH - VERTICAL UNIT DIM.
MINUS 3.688
17J9
CAPTURED 90° I.S. CORNER EXTERIOR
GLAZING BEAD
CUT TO LENGTH - VERTICAL D.L.O.
MINUS .063
17E9
CAPTURED 90° I.S. CORNER INTERIOR
GLAZING BEAD
U17E9-001
17F6
SSG 90° O.S. CORNER MULLION GLAZING
ADAPTER
CUT TO LENGTH - VERTICAL UNIT DIM.
MINUS 1.500
17F7
SSG 90° I.S. CORNER MULLION GLAZING
ADAPTER
CUT TO LENGTH - VERTICAL UNIT DIM.
MINUS 1.500
17D3
SSG 90° I.S. CORNER MULLION GLAZING
ADAPTER
U17D3-001, U17D3-002
17L6
FABRICATED #
FM12
SSG 90° I.S. CORNER MULLION GLAZING
ADAPTER
REFERENCE FM12 PART DRAWINGS
