EFCO 2009

Page 34

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

1. Assemble the framing facing upward (glazing side up). Use saw horses or assembly tables during assembly. Provisions to protect the finished surfaces of

the material must be employed on the table or saw horses.

2. Check to ensure the frame gaskets are intact and properly applied.
3. Fasten the ends of all of the horizontals, first to one jamb, with SFQ5 (1/4”-14 X 1 1/2” HW-SMS 18-8), and then to the remaining jamb. Torque the screws

tight enough to fully compress the frame gaskets, but do not over tighten. Wax applied to the threads of the fasteners is recommended for lubrication to assist
with driving in the screws. Cap seal the fastener heads with sealant.

SFQ5

CAPT. &

SSG VERT.

MULLION

Frame Pad

SILL

HEAD

INT. HORIZ.

END PREP. COPE

Stack Joint
Caulk Backer

Section 3 - B. Unit Frame Assembly

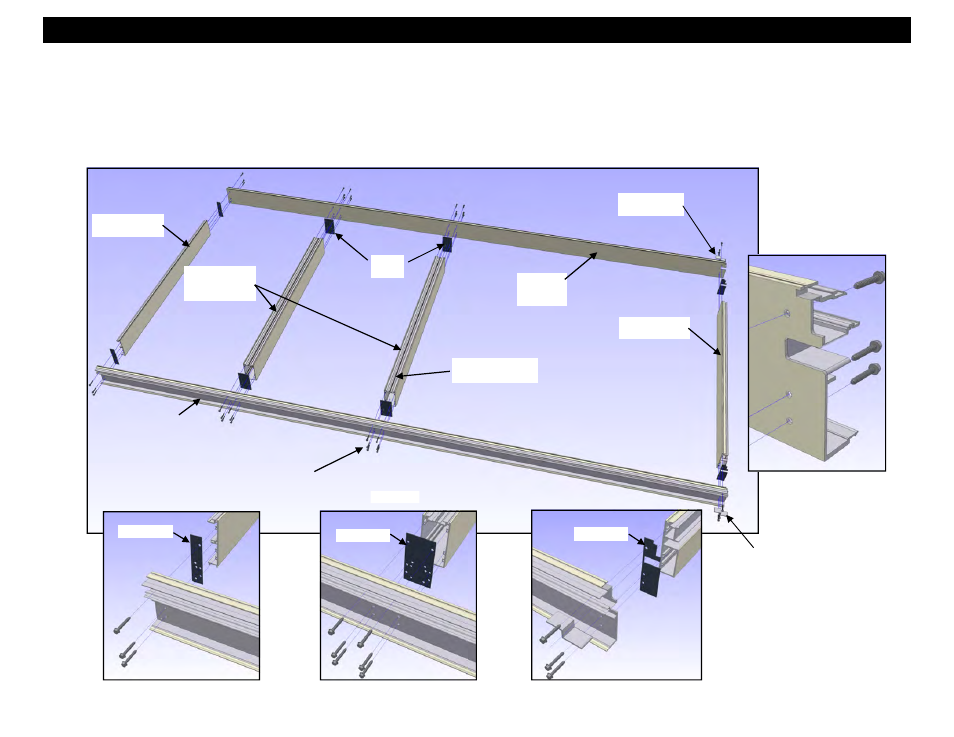

Figure 24

Frame Pad

Frame Pad

Capt. and SSG

Stack Head

Capt. and SSG

Intermediate

Horizontals

Frame

Pads

Stack Joint

Caulk Backer

Capt. and

SSG Vert.

Mullion

Capt. and SSG

Stack Sill

Assemble glazing
side up.
