EFCO 2012

Page 59

Series 5500 XTherm

™

Curtain Wall Assembly and Installation Instructions

Section 15 - Exterior Cover Installation

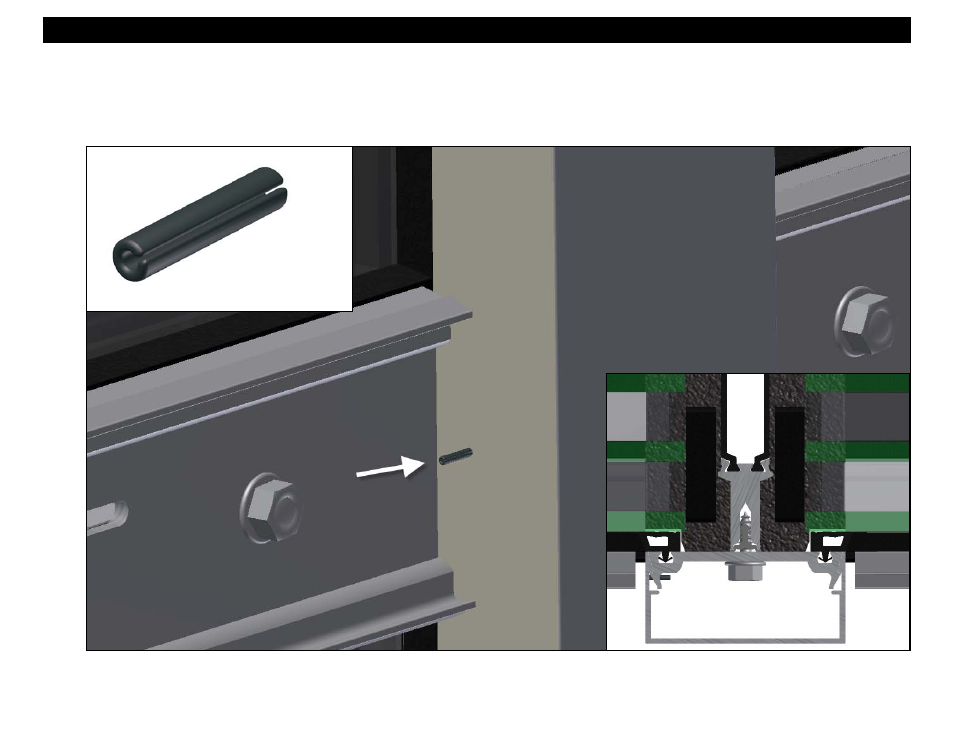

1. On vertical covers 1” in depth and over, it is necessary to install a 1/16” x 5/16” roll pin at the horizontal cover locations to prevent slippage.
2. On Horizontal covers 1” in depth and over, it is necessary to mechanically attach the cover to the pressure plate similar to what is shown below to insure

against disengagement of cover from the pressure plate.

EFCO Part # HL94
1/16” x 5/16” Role
