EFCO 2012 Page 18
Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Fasten the jamb to
the filler with SPC9
screws at the
horizontal locations.
(1 location minimum).
6. Seal the jamb as shown in Figures 3 thru 5 on page 17 at the horizontal locations, and snap the perimeter jamb mullion onto the filler portion of the
assembled frame.
7. Fasten the jamb to the filler with SPC9 screws at the horizontal locations. The number of fasteners will vary with the length of the perimeter jamb member
and the number of horizontals in the frame, but a minimum of 1 SPC9 per jamb is required. Jamb attachment is required for left and right jamb frame
assemblies.
Section 7 - Frame Assembly
Perimeter O.G.
Jamb Mullion
Apply sealant in reglets of jambs at
horizontal locations.
(See Figures 3 thru 5 on page 16.)

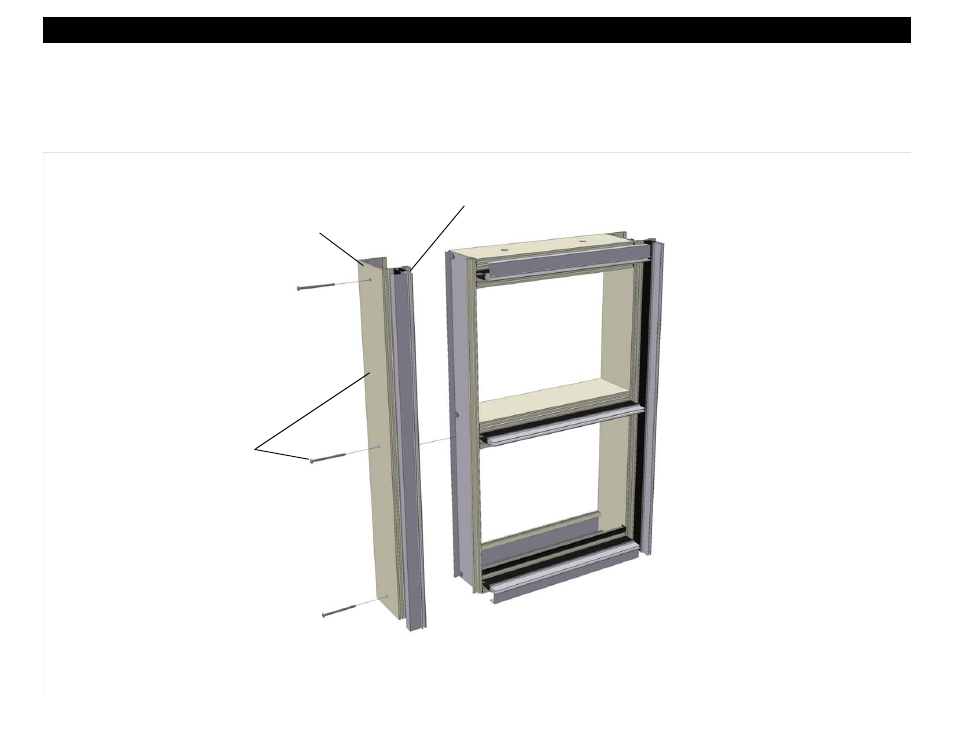

Figure 6
Typical Left Jamb Frame
