Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions

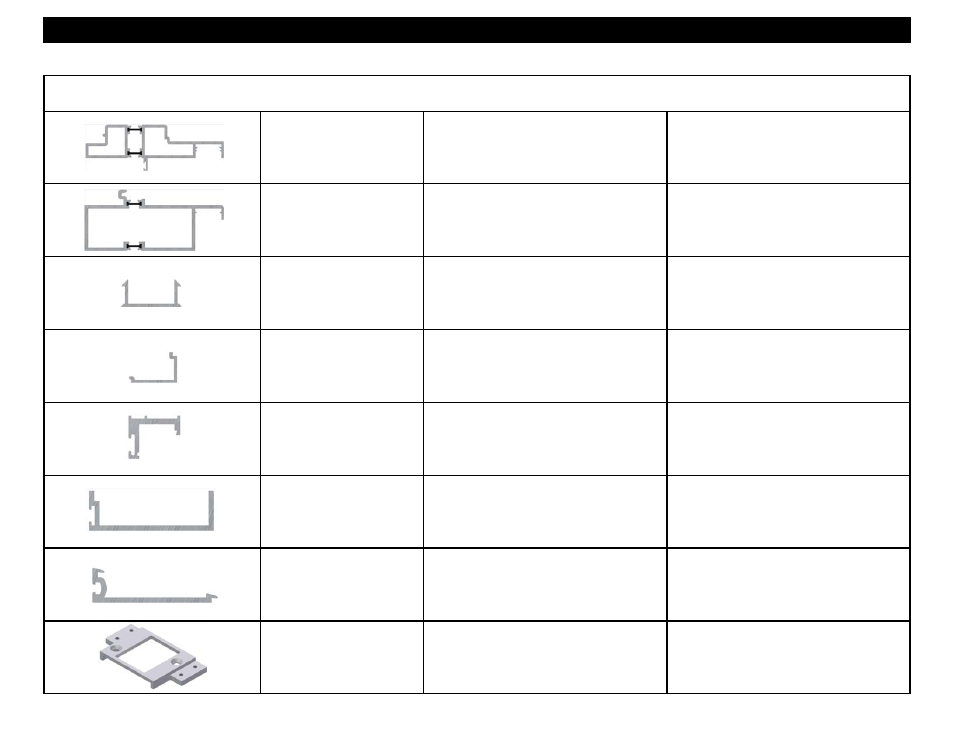

Section 5 - Parts Identification - Misc. Extrusions
5G11
Profile Part No. Description Tooling Drawing / Cut Formulas
Door Jamb Adapter
55XT-000974, 55XT-001649, 55XT-001679,
55XT-000823, 55XT-000878, 55XT-000846,
55XT-002487, 55XT-002520, 55XT-002523,
55XT-002524, 55XT-002525, 55XT-002526,
55XT-002533
17R1 Door Header Filler
5G17 Door Header
55XT-000767, 55XT-00827,55XT-00950,
55XT-000951, 55XT-00952, 55XT-002521,
55XT-002522, 55XT-002527, 55XT-002528,
55XT-002529, 55XT-002530, 55XT-002531,
55XT-002532
Cut to length x horizontal D.L.O. at
side lite minus 1/32”.
9155
4437
Door Stop Snap Cover
Cut to length x horizontal
D.O. minus 1/32”.
Door Header Door Stop
Cut to length x horizontal
D.O. minus 1/32”. 55XT-000576
9933 Door Header Door Stop
Cut to length x horizontal
D.O. minus 1/32”. 55XT-000953,
55XT-000954, 55XT-000605
FWF1 Strike Plate Adapter Reference FWF1 Part Drawing.
1283 Snap Filler for 5G11 and 5G17
Cut to length x horizontal
D.O. minus 1/32”.
