Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Typical Expansion Mullion Frames
Female Expansion
Mullion

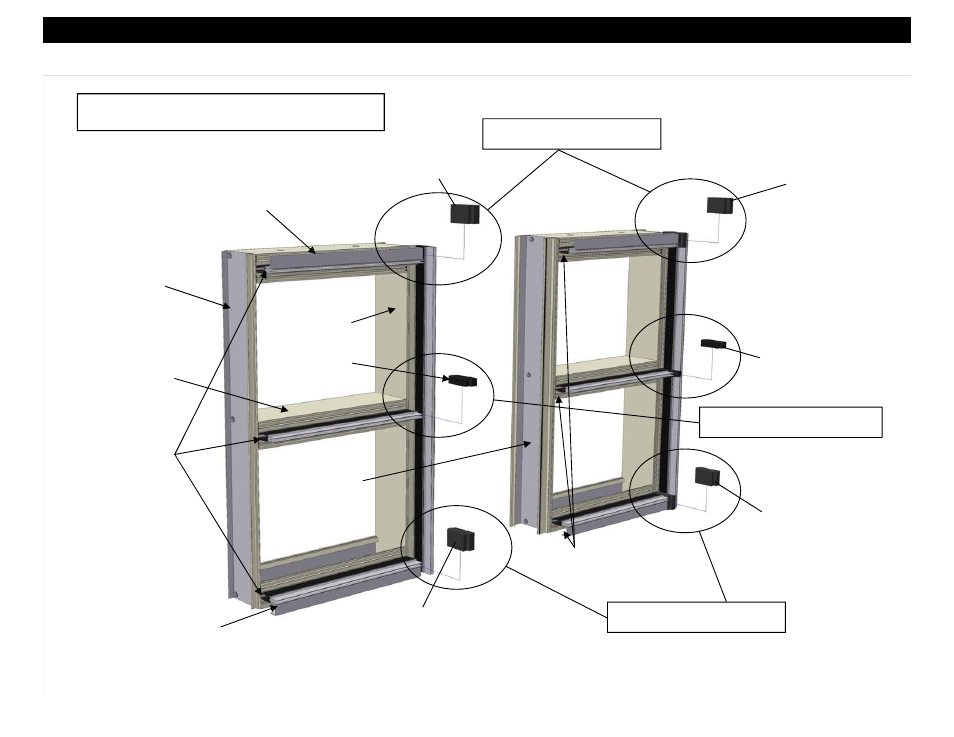

Section 8 - Shop Applied Joint Plugs
Figure 10
Apply all perimeter and intermediate joint plugs that can
be pre-installed in the shop as shown and noted below.
Intermediate
Joint Plug
Perimeter
Joint Plug
Field applied joint plugs.
See sheet 37 and 39.
Sill
Intermediate
Horizontal
Male Expansion
Mullion
Head
Vertical Filler
Perimeter
Joint Plug
Perimeter
Joint Plug
Intermediate
Joint Plug
Perimeter
Joint Plug
Field applied joint plugs.
See sheet 37 and 39.
See Figures on pages 29 perimeter
plug sealant application.
See Figures on pages 30 for
intermediate plug sealant application.
See Figures on pages 31 for
perimeter plug sealant application.
