Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Section 13 - Glazing Preparation
1. Remove glazing gasket from the reel and allow to shrink.

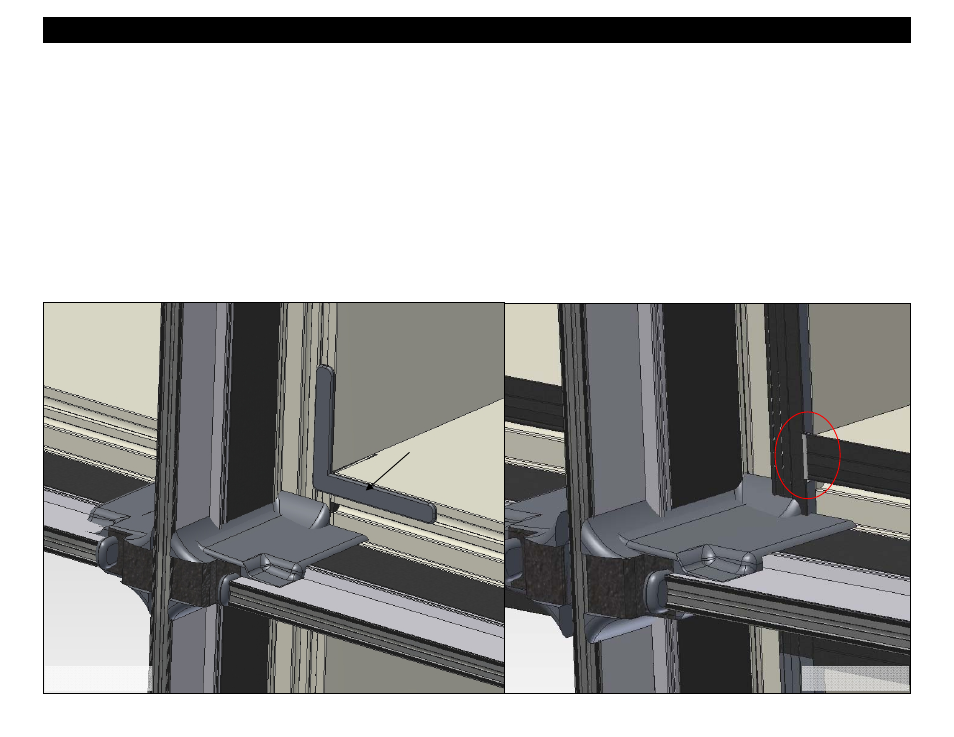

2. Apply sealant into gasket raceway a minimum of 2” in each direction from the corner. (Figure 59)
3. Once the gaskets have relaxed, cut and install into position. Vertical gaskets must ne cut vertical D.L.O. plus 1 3/4”. Place into position starting a the center
of the D.L.O. Crowd the excess at the ends, ( take care not to stretch the gasket during installation)
4. Cut Horizontal gasket D.L.O. plus 1/2” and insert the gasket at the center of the D.L.O. and crowd excess at the ends. ( take care not to stretch the gasket
during installation)
5. Seal all gasket corners and butt joints as indicated below. (Figure 60)
Figure 59
Intermediate Section
Step2
Figure 60
Intermediate Section
