Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions

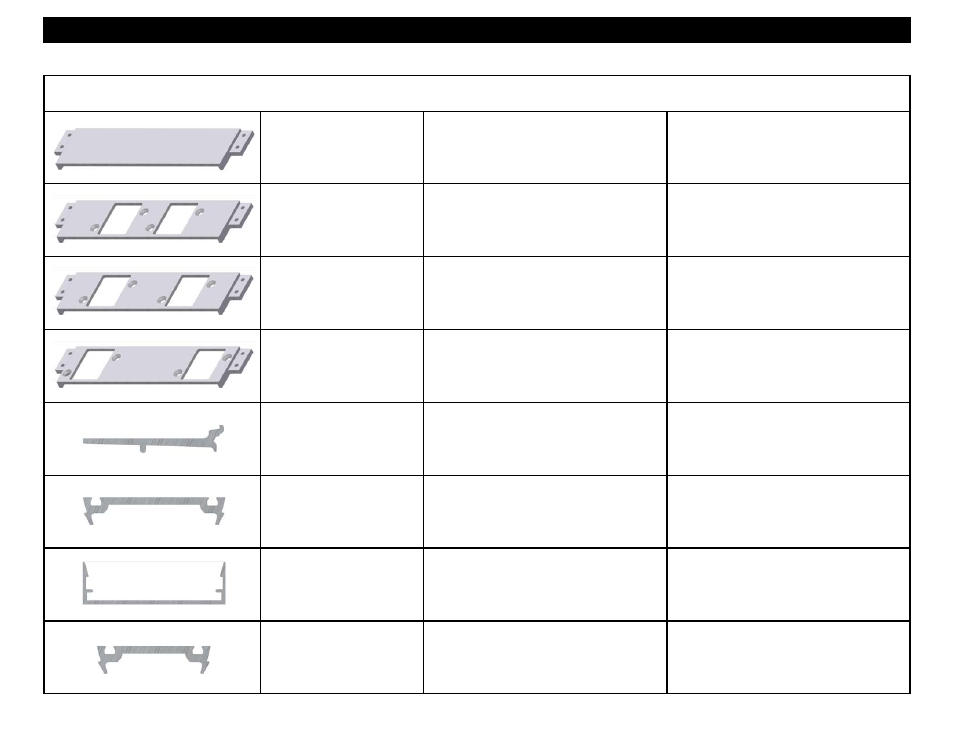

Section 5 - Parts Identification - Misc. Extrusions
FL08
Profile Part No. Description
Tooling Drawing / Cut Formulas
2” Glazing Setting Chair Reference FL08 Part Drawing.
KW95
7090
Standard 2 1/2” Pressure Plate
Standard 2 1/2” X 3/4” Cover
2” Pressure Plate used at Door
Header
KZ54
FWF2 Strike Plate Adapter Reference FWF2 Part Drawing.
FWF3 Strike Plate Adapter Reference FWF3 Part Drawing.
FWF4 Strike Plate Adapter Reference FWF4 Part Drawing.
FWF5 Strike Plate Adapter Reference FWF5 Part Drawing.
Reference KW95 Part Drawing.
CTWL-594F
Cut to frame dim. at vertical.
CTWL-219A at horizontal.
Reference KZ54 Part Drawing.
