Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Section 11 - Install Single Span Frame Components
1. Set the first frame into the opening using dead load shims to level the frame, and make all necessary adjustments to properly locate the frame to established
benchmarks.
2. After the frame is plumb and all adjustments have been made, match drill through the holes in the head and sill into the surrounding substrate, and apply the
anchor bolts. Anchor bolt size, type, quantity, and location vary. Refer to the approved shop drawings for more information. The anchors at the head require
an anchor bolt sleeve to accommodate thermal expansion and contraction, and building movements.

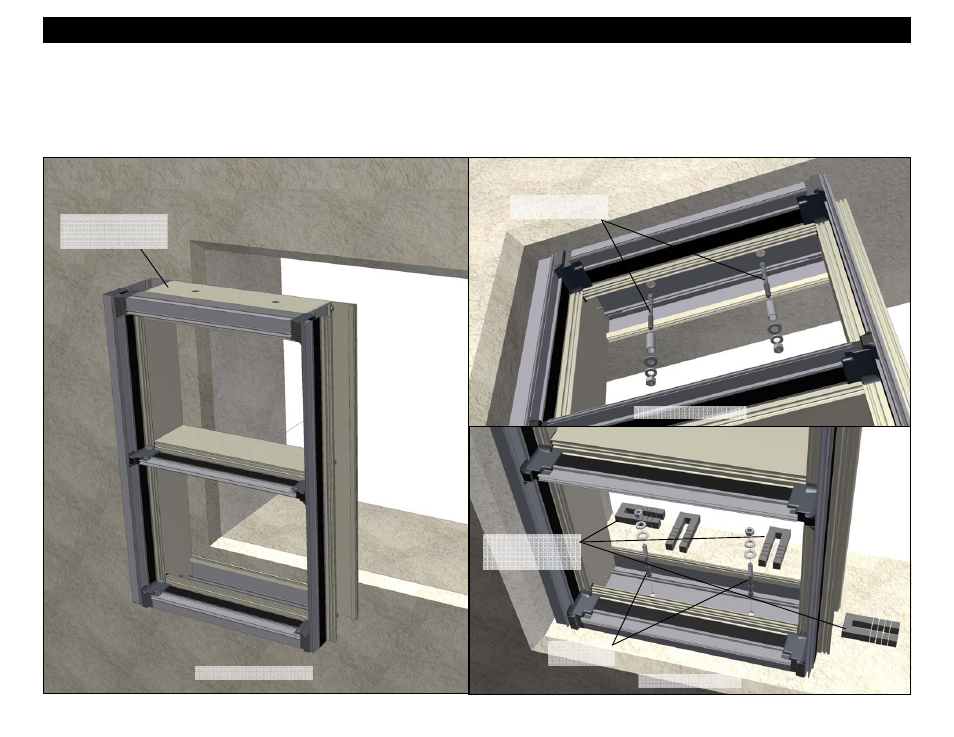

Typical Left Jamb Frame
Standard Head Anchor
Standard Sill Anchor
Anchor bolts with
sleeves as required.
Anchor bolts
as required.
Apply dead load
shims at anchors
and below verticals
Set the frame into the
opening and shim
level and plumb.
