EFCO 2012 Page 20
Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Section 8 - Shop Applied Joint Plugs

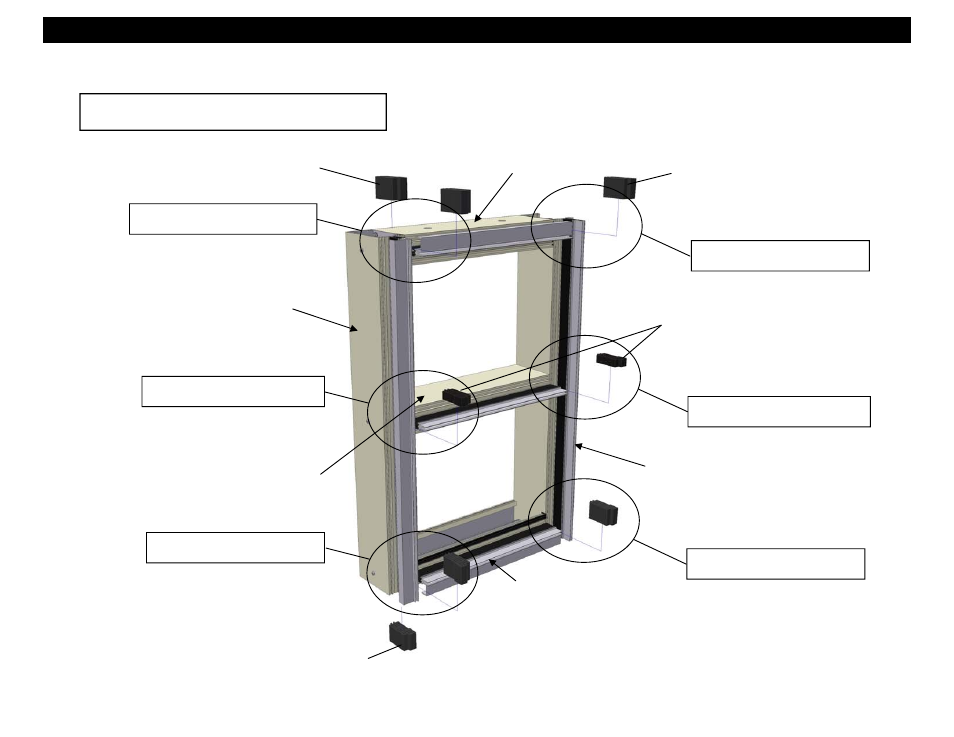

Figure 8
See Figures on pages 24 and 25 for
perimeter plug sealant application.
See Figures on page 29 perimeter
plug sealant application.
See Figures on page 30 for
intermediate plug sealant application.
See Figures on page 31 for perimeter
plug sealant application.
See Figures on pages 27 and 28 for
perimeter plug sealant application.
See Figures on page 26 for perimeter
plug sealant application.
Intermediate
Joint Plugs
Perimeter
Joint Plug
Perimeter
Joint Plug
Typical Left Jamb Frame
Head
Sill
Perimeter O.G.
Mullion
Intermediate
O.G. Mullion
Intermediate
Horizontal
Apply all perimeter and intermediate joint plugs that can
be pre-installed in the shop as shown and noted below.
Perimeter
Joint Plug
