EFCO 2012 Page 21
Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions

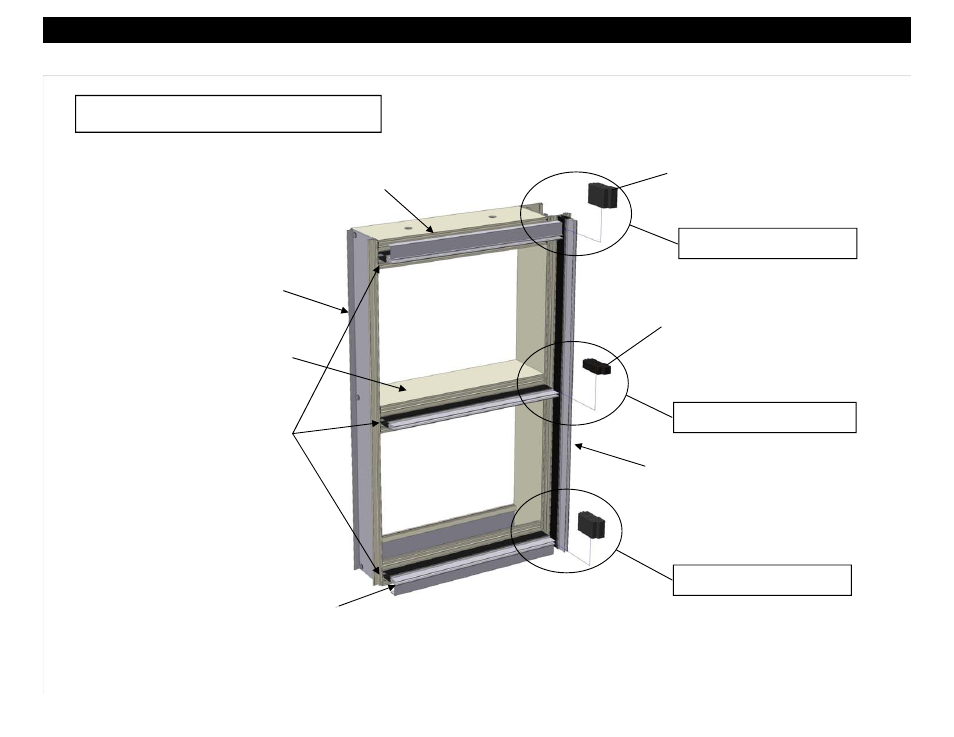

Typical Intermediate Frame
Section 8 - Shop Applied Joint Plugs
Figure 9
Apply all perimeter and intermediate joint plugs that can
be pre-installed in the shop as shown and noted below.
Intermediate
Joint Plug
Perimeter
Joint Plug
Field applied joint plugs.
See sheet 37 and 39.
Sill
Intermediate
Horizontal
Intermediate
O.G. Mullion
Head
Vertical Filler
See Figures on page 29 perimeter
plug sealant application.
See Figures on page 30 for
intermediate plug sealant application.
See Figures on page 31 for
perimeter plug sealant application.
