Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Section 12 - Install Twin Span Frame Components
1. Set the first frame into the opening using dead load shims at the sill to level the frame, and make all necessary adjustments to properly locate the frame to
established benchmarks.
2. After the frame is plumb and all adjustments have been made, match drill through the holes in the head and sill into the surrounding substrate, and apply the
anchor bolts at the head and sill. Anchor bolt size, type, quantity, and location vary. Refer to the final approved shop drawings for more information. The
anchors at the head require an anchor bolt sleeve to accommodate thermal expansion and contraction, and building movements.
3. Apply intermediate wind load jamb anchor as shown and noted on pages 42 and 44.

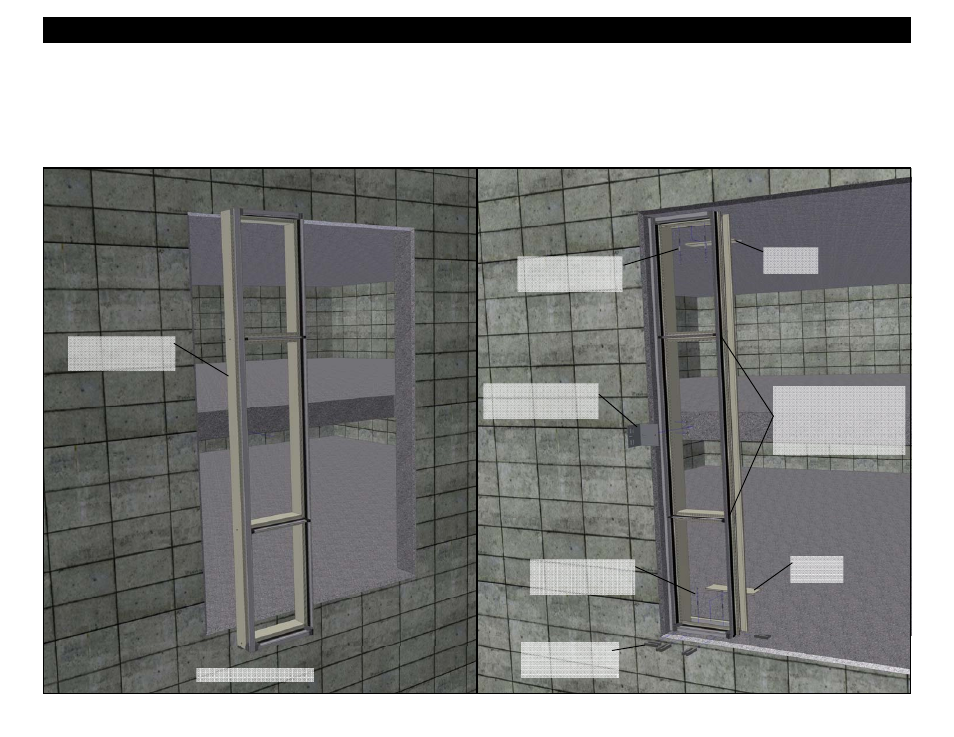

Typical Left Jamb Frame
Set the frame into the
opening and shim
level and plumb.
Snap filler
in to sill.
Seal the vertical at all
horizontal locations.
(See Figure 2 and 3 on page
17). This must be done
only immediately prior to
setting the next frame.
Snap filler
in to head.
Anchor the frame into
the opening as shown
on pages 33 and 34.
Anchor the frame into
the opening as shown
on pages 33 and 34.
Apply intermediate wind
load jamb anchor. See
pages 42 through 44.
Apply dead load
shims at anchors
and below verticals
