EFCO 5500X Outside Glazed User Manual
Page 56
EFCO 2012
Page 56
Series 5500 XTherm
™
Curtain Wall Assembly and Installation Instructions
As required
1 1/2”
2”
Section 14 - Vertical Splice Joints
Section 14 - Vertical Splice Joints

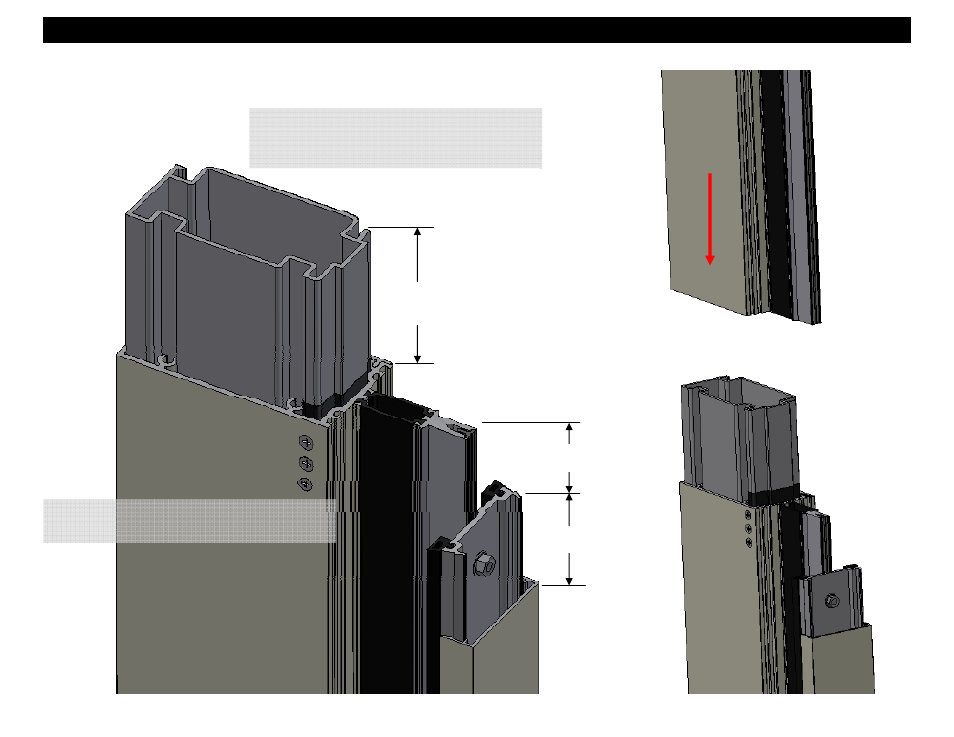

Splice sleeve will vary with the system mullion
depth and requirements. Reference approved
final shop drawing for splice details
Apply bond breaker tape to the center of the
splice and insert into lower mullion
