Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions

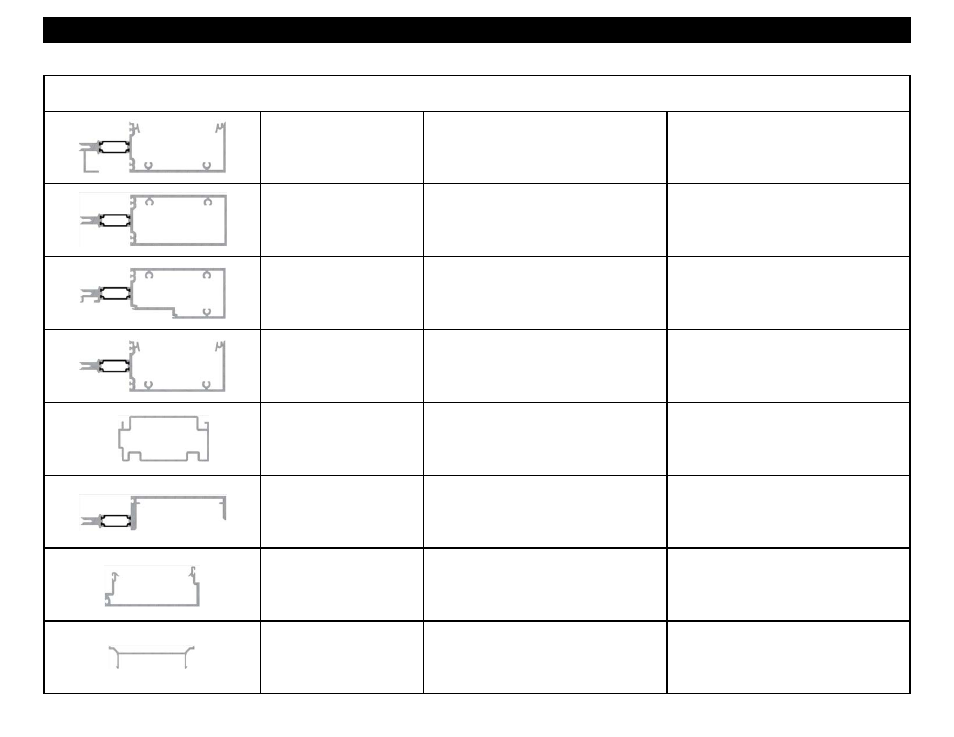

Section 4 - Parts Identification - 8” System
5G06
Profile Part No. Description Tooling Drawing / Cut Formulas
8” Head / Sill / Jamb
5G07
FL01
(Made from 15P7)
5G08
5G09
8” Door Header
8” Intermediate Horizontal
8” Intermediate Vertical
Splice for 5G09, 5G06
8” Expansion Vertical 5G10
17P4
FK35
(Made from 15K3)
8” Expansion Vertical
8” Mullion Clip
55XT-001, 55XT-009
55XT-002, 55XT-006
55XT-003, 55XT-007
55XT-008
Reference FL01 Part Drawing.
55XT-008
Cut to length = horizontal D.L.O.
Cut to length = horizontal D.L.O.
Reference FK35 Part Drawing.
