Series 5500 XTherm ™ Curtain Wall Assembly and Installation Instructions
Section 9 - Perimeter Pocket Fillers
Perimeter O.G.
Mullion
1. Apply the LC08 perimeter PVC pocket filler to the head, sill, and jamb of the jamb frames. Note that the LC08 stops 1 1/2” short at each end of the jambs to
allow for the installation of the perimeter joint plug. The LC08 at the head and sill runs the length of the D.L.O. dimension.
2. Apply the LC08 perimeter PVC pocket filler to the heads and sills of the Intermediate frames.
3. Shop assembly is complete. Frames are ready for installation.
4. Avoid racking the frames during shipment and handling.

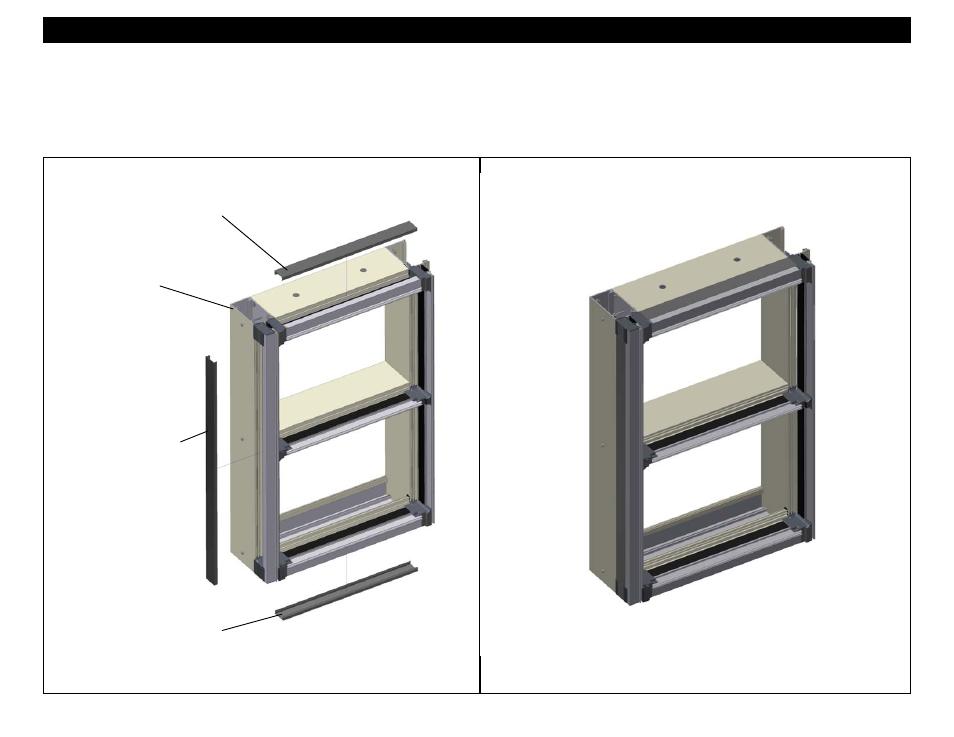

LC08 Perimeter PVC Pocket Filler
Runs horizontal D.L.O. dimension.
Figure 43
LC08 Perimeter PVC Pocket Filler
Runs horizontal D.L.O. dimension.
LC08 Perimeter PVC
Pocket Filler Allow
1 3/4” per end for the joint
at each end at the joint
plug at the head and sill.
Assembled frame ready
for installation.
