23

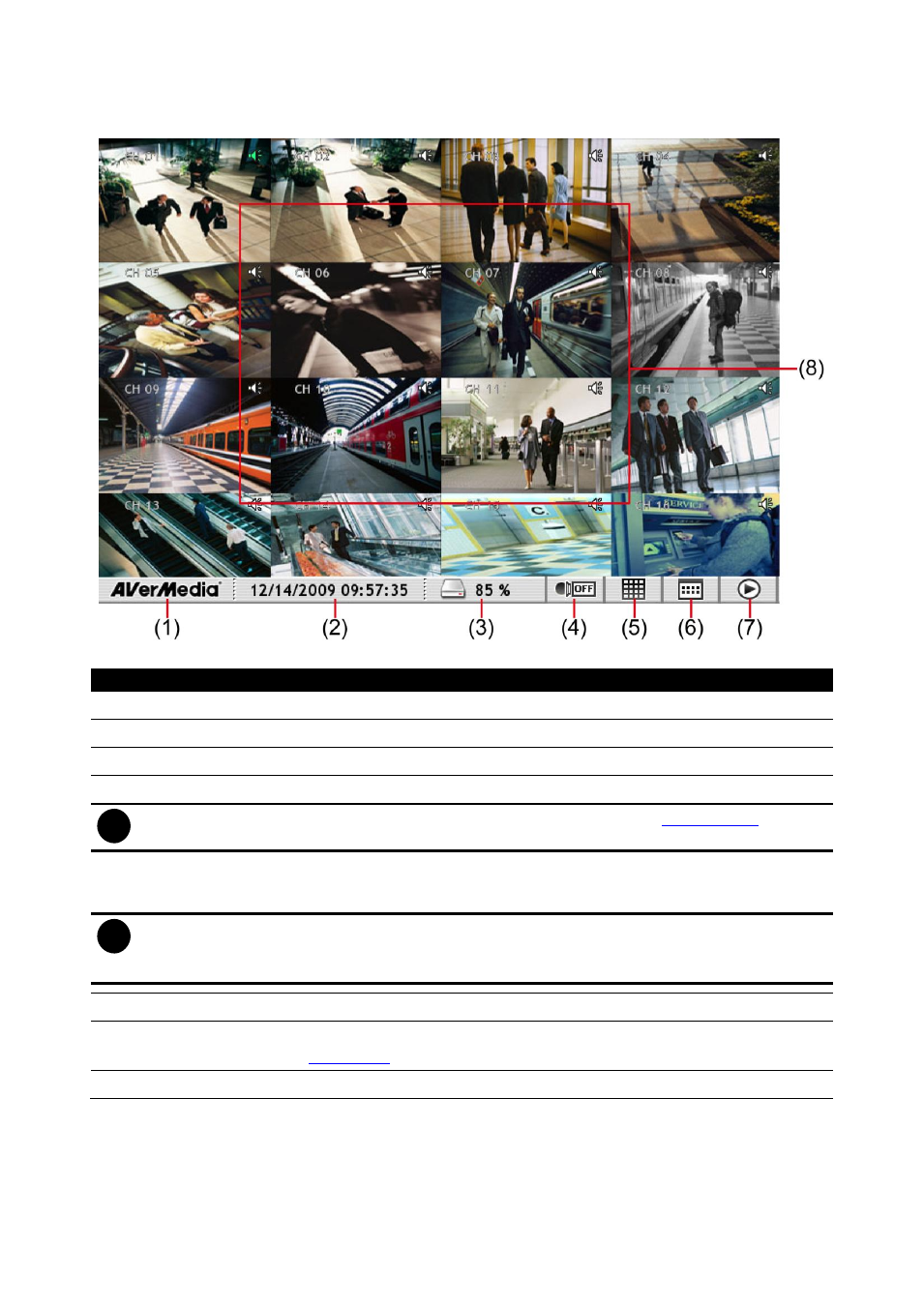

2.3 Familiarizing the Functions in Preview Mode
(SEB5116H series)
Name Function
(1) Login Click to select reboot the DVR system or re-login in different account.
(2) Status Display recording date and time
(3) Hard disk usage Display the hard disk usage of capacity in percentage.
(4) Record Start/stop video recording.
i
Recording schedule must be setup in order to record. Please refer to Chapter 3.4.2 to setup
recoding schedule.
(5) Split screen mode Select from 6 different split screen types to view all the camera, or one camera
over the other or alongside on a single screen. It also allows you to switch and
view different camera number.
i
- Double click on channel can switch to full screen mode of the channel.
- When you are in single screen mode, Right-click on the area you want to enlarge view.
Right-click again will back to normal screen view.
(6) Setup menu To call out system setup menu
(7) Playback Switch to Playback mode. This allows you to view the recorded video file. (see
also Chapter 2.4 )
(8) Channel preview To display live video of all channels
