Look and listen for the indications described in

Checking Connections and Switches

Improperly set switches, controls, and loose or improperly connected cables are the most likely source of problems for the system, monitor, or other
peripherals (such as a printer, keyboard, mouse, or other external equipment). A quick check of all the switches, controls, and cable connections can easily
solve these problems. See

Figure 2

-2

for the back-panel features and connectors.

Back-Panel Features

Figure 2

-2

shows the back-panel features of the system.

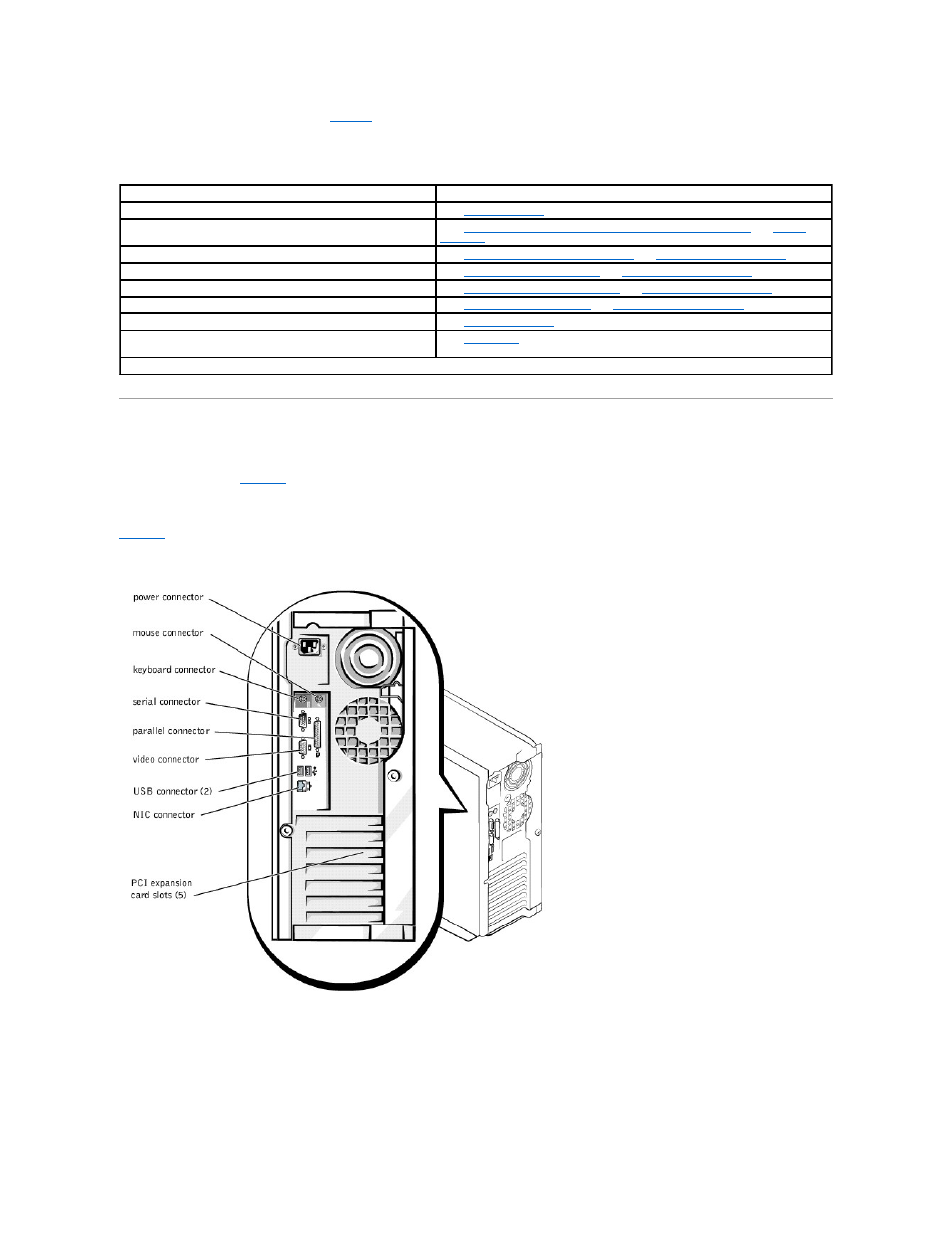

Figure 2-2. Back-Panel Features

Complete the following procedure to check all the connections and switches:

Checking Specific System Problems

Turn off the system, including any attached peripherals. Disconnect all the power cables from their electrical outlets.

If the system is connected to a PDU, turn the PDU off and then on again.
