Installing System Components 95

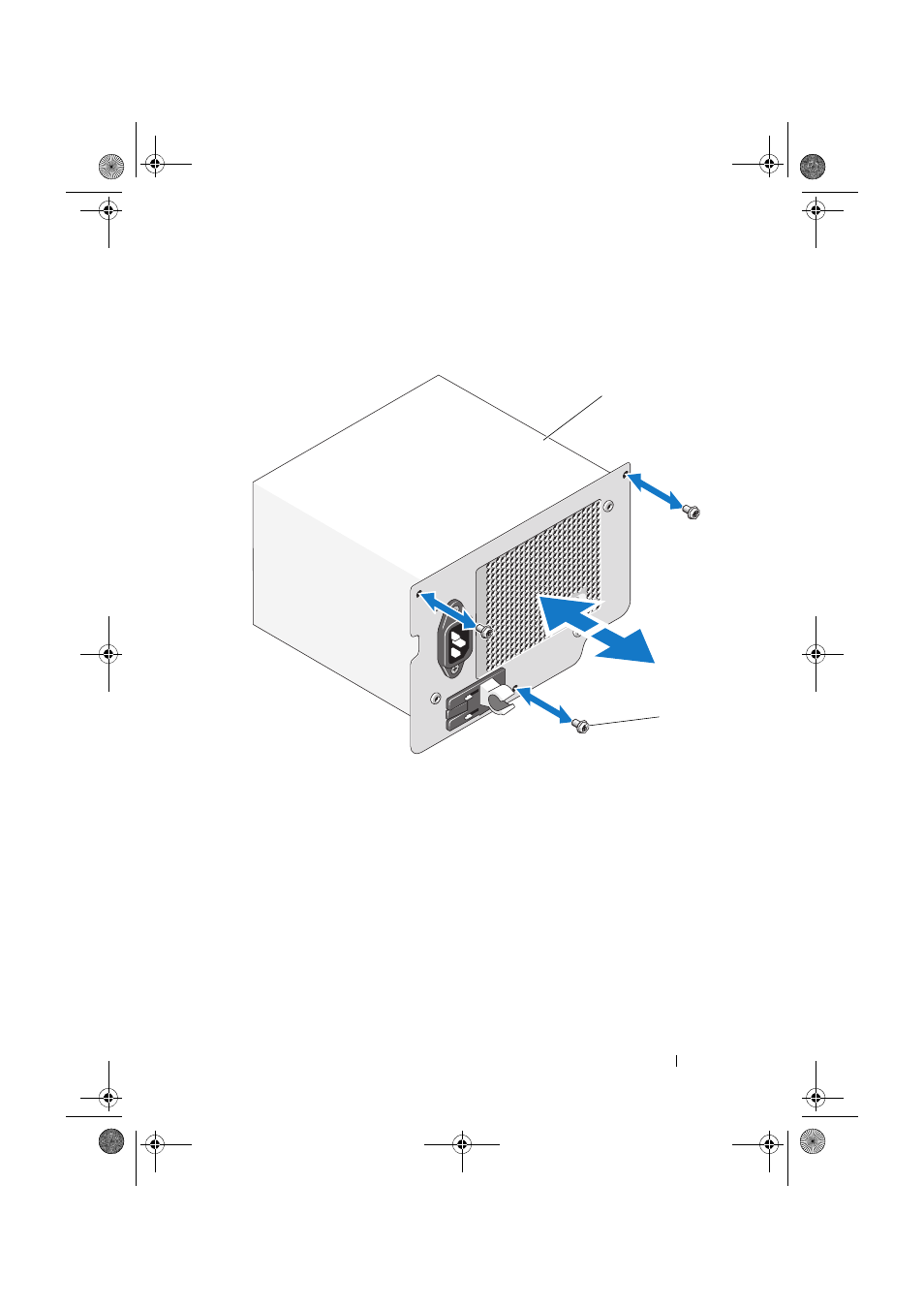

Figure 3-12. Removing and Replacing a Power Supply
Installing a Power Supply
1 Open the system. See "Opening the System" on page 79.
2 Place the power supply in the chassis. Tighten the three screws to
secure the power supply to the chassis.
3 Connect all cables to the system board and drives.
4 Replace the system cover. See "Closing the System" on page 80.
1 Power supply 2 screws (3)
