76 Installing System Components
Installing the Front Bezel
1 Insert the bezel tabs into the bezel tab slots in the chassis. See Figure 3-2.
2 Press the top end of the bezel into the chassis until the lever locks
into place.
3 Using the system key, lock the bezel.
Front Bezel Inserts
Removing the Front Bezel Insert
NOTE: Before installing a drive in one or more of the front drive bays, remove the
corresponding insert(s) on the front bezel.
NOTE: Bezel inserts may contain screws on the inside. You can attach the screws
to new drives, as needed.
1 Remove the front bezel. See "Removing the Front Bezel" on page 75.
2 Press the insert tab and pull the insert away from the bezel. See Figure 3-3.

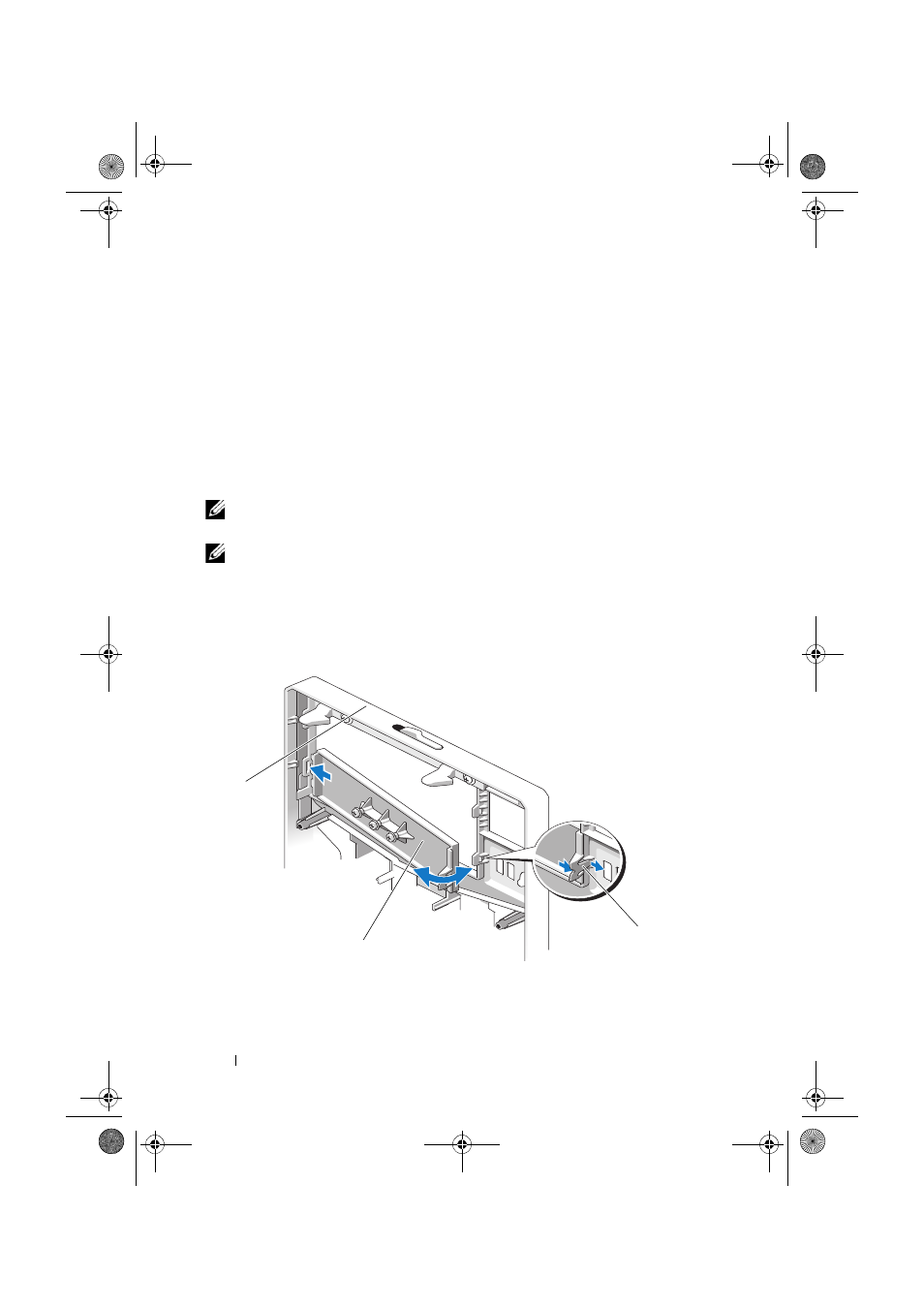

Figure 3-3. Removing and Installing the Front Bezel Insert
1 front bezel 2 front bezel insert
3 insert tab
1
3
2
