Rack Mount Configuration 241

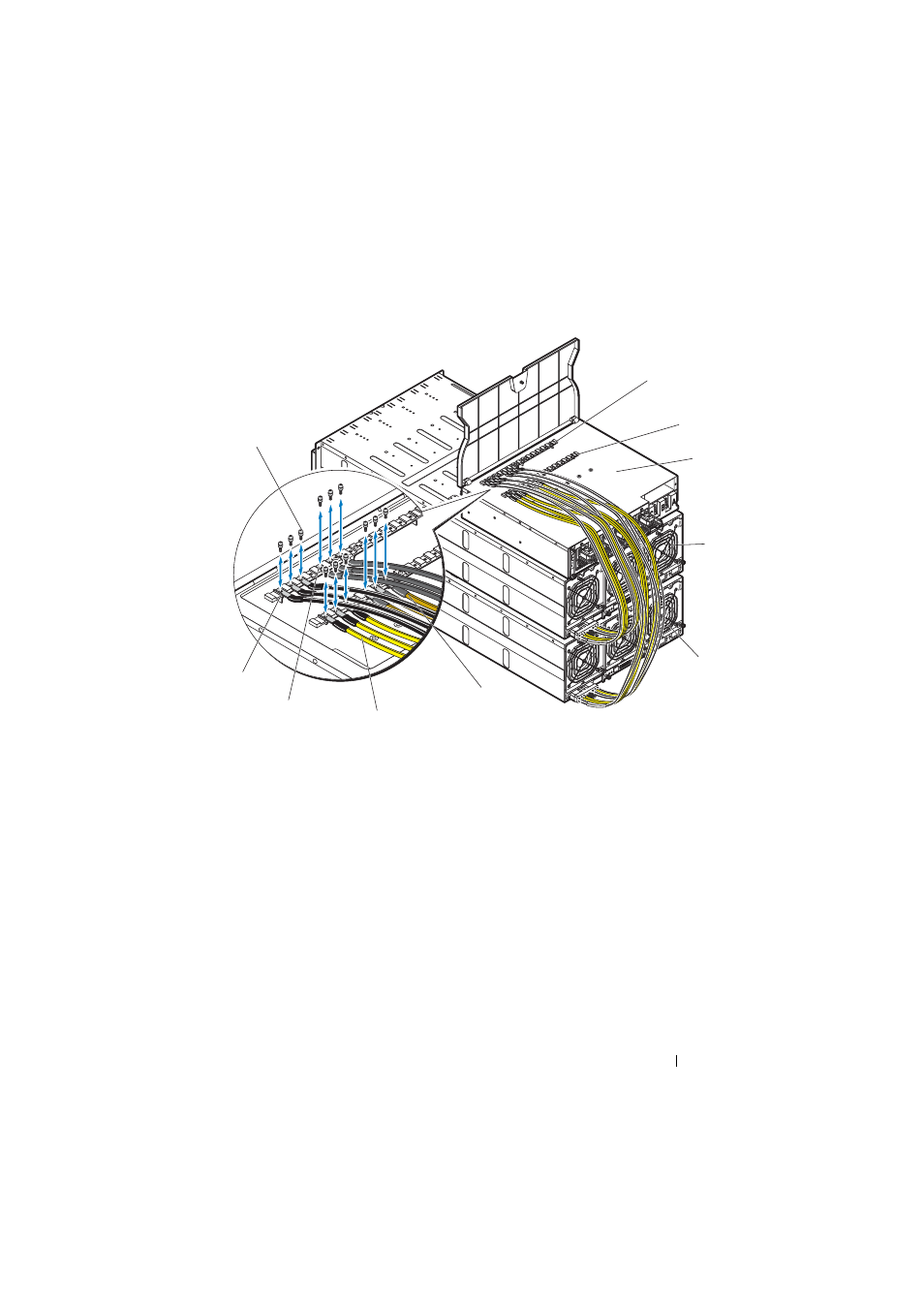

Figure 4-17. Connecting Multiple Server Enclosures to the PDU
5 Close the cable cover and secure to the PDU. See Figure 4-15.
1 screws (12) 2 power bus bar (GND)
3 power bus bar (12 V) 4 PDU device
5 server enclosure 1 6 server enclosure 2
7 server enclosure 2 yellow power
cables (3)
8 server enclosure 1 yellow power
cables (3)
9 server enclosure 2 black power
cables (3)
10 server enclosure 1 black power
cables (3)
1
2
3
4
5
7
8
9
10
6
