Dell PowerEdge C8000 User Manual
Page 21
About the System
21

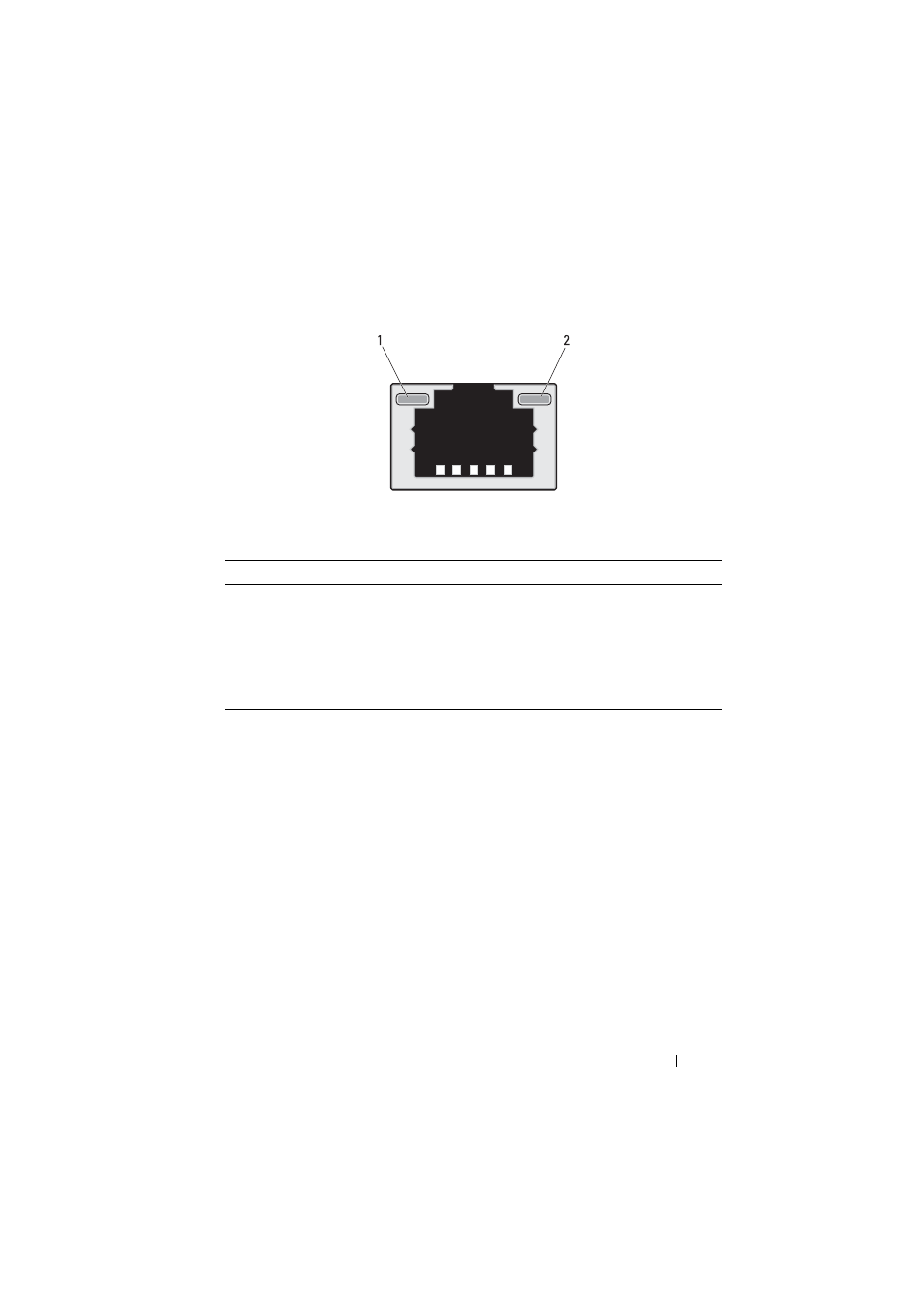

Figure 1-7. NIC Indicators (BMC management port)
1
link indicator
2
activity indicator
Indicator
Status Indicator
Code
Link indicator Blinking amber Linking at 10 Mbps port speed
Blinking green
Linking at 100 Mbps port speed (maximum)
Activity
indicator
Solid green
No activity
Blinking green
Transmit or receive activity
Off
Idle
