Dell PowerEdge C8000 User Manual
Page 232
232
Rack Mount Configuration
b
Disconnect the PDU from the power source.
2 Remove the power cable interface box (PCIB) module.
a
Remove the two screws securing the PCIB module.
b
Grasp the PCIB handle and pull it out of it’s bay.

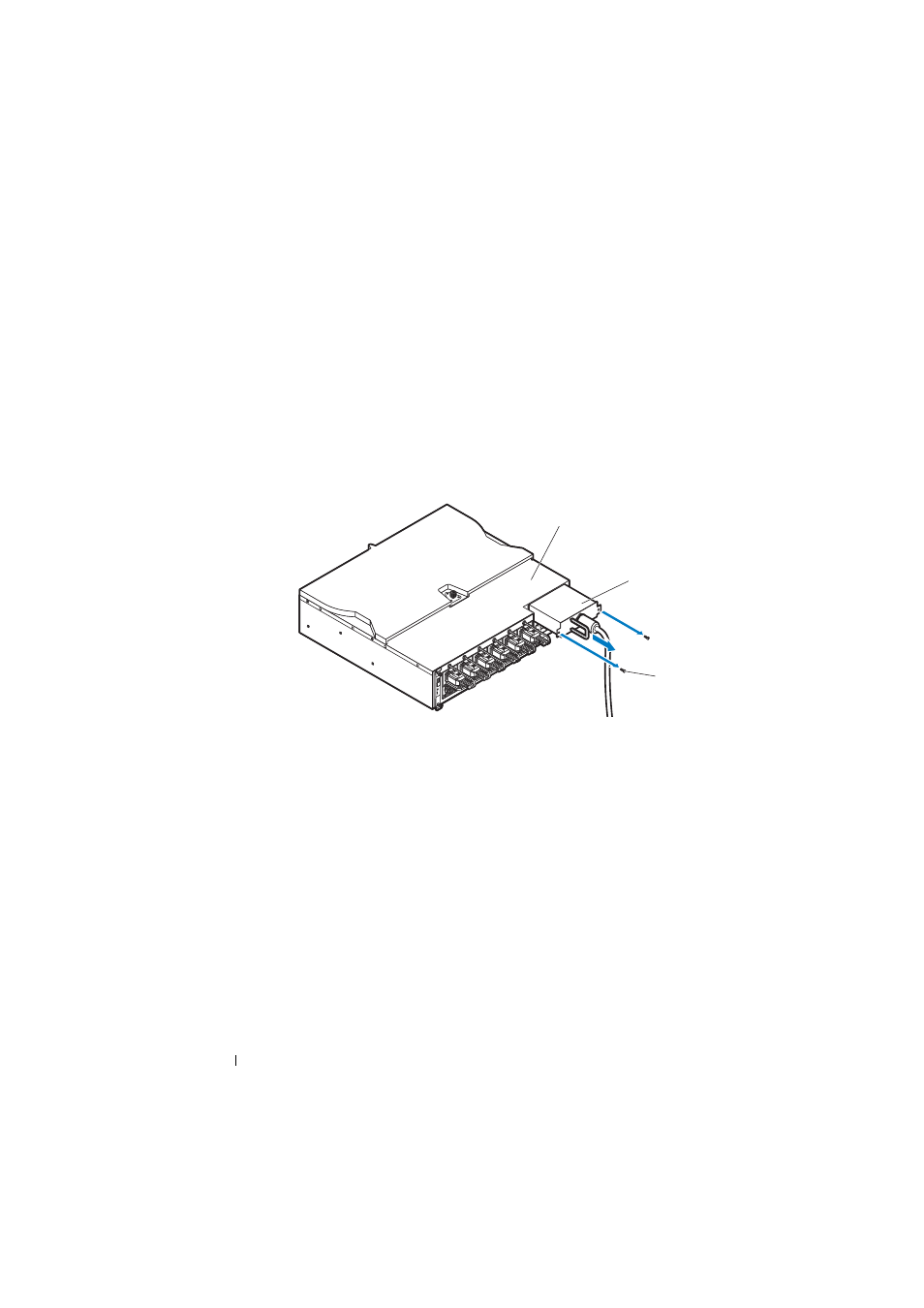

Figure 4-8. Removing the PCIB Module
1
PDU device
2
breaker switches (3)
1
PDU device
2
PCIB module
3
screw (2)
1
2
3
