About the System 31

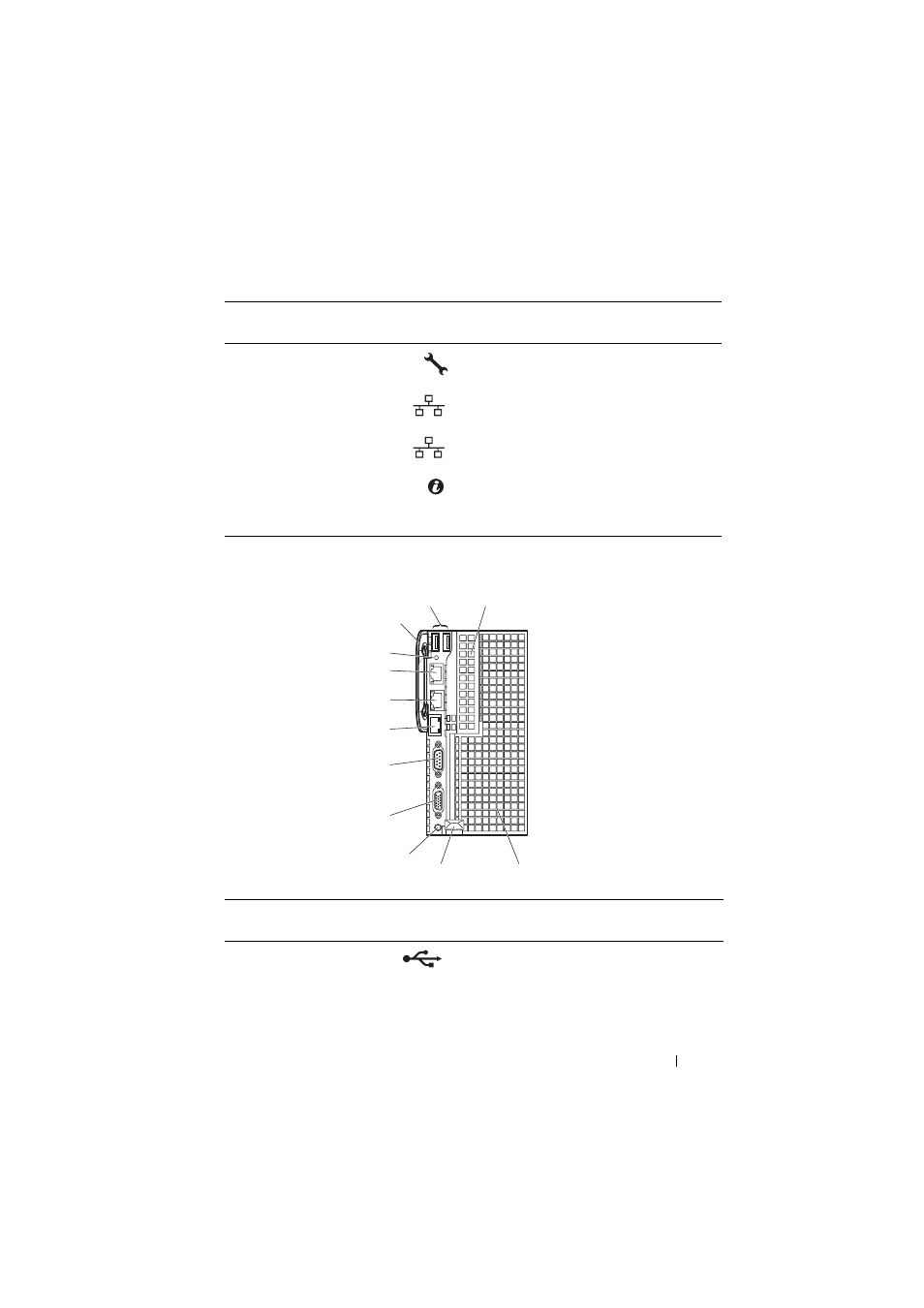

Figure 1-16. Sled Features — C8220X Double-Wide Compute Sled with GPGPU
12 BMC management
port
Dedicated management port.
13 Ethernet connector 2 Embedded 10/100/1000 Mbit NIC
connector.
14 Ethernet connector 1 Embedded 10/100/1000 Mbit NIC
connector.
15 Sled identification
indicator
Lights blue to identify a particular sled
and system board.
16 Handle Hold to pull the sled from the enclosure.
Item Indicator, Button, or
Connector Icon Description
1 USB connectors Connects USB devices to the sled. The ports
are USB 2.0 compliant.
2 Mezzanine card
expansion slot
Installs an I/O module mezzanine card.
Item Indicator, Button, or
Connector Icon Description
2
1
1
3 4 5
6
7
8
9
10
11
2
12
