Remaining Time Indication for Dilution Cycle
—
To view remaining time in minutes on the control panel
indicator, depress the Stop button (PB2) during the shut-
down dilution cycle operation. It will be displayed only while
the button is depressed.
The following example indicates 12 minutes still remain
before dilution cycle is completed:
Dilution Cycle Indication — dPP
Depress Stop Button (PB2)
Remaining Time Indication — d12
Control Wiring — Figures 18-23 represent typical ma-
chine wiring schematics and component identification. See
machine control panel diagram (Fig. 10) for component lo-
cation. Refer to burner manufacturer’s manual for burner con-
trol wiring diagram and component identification.

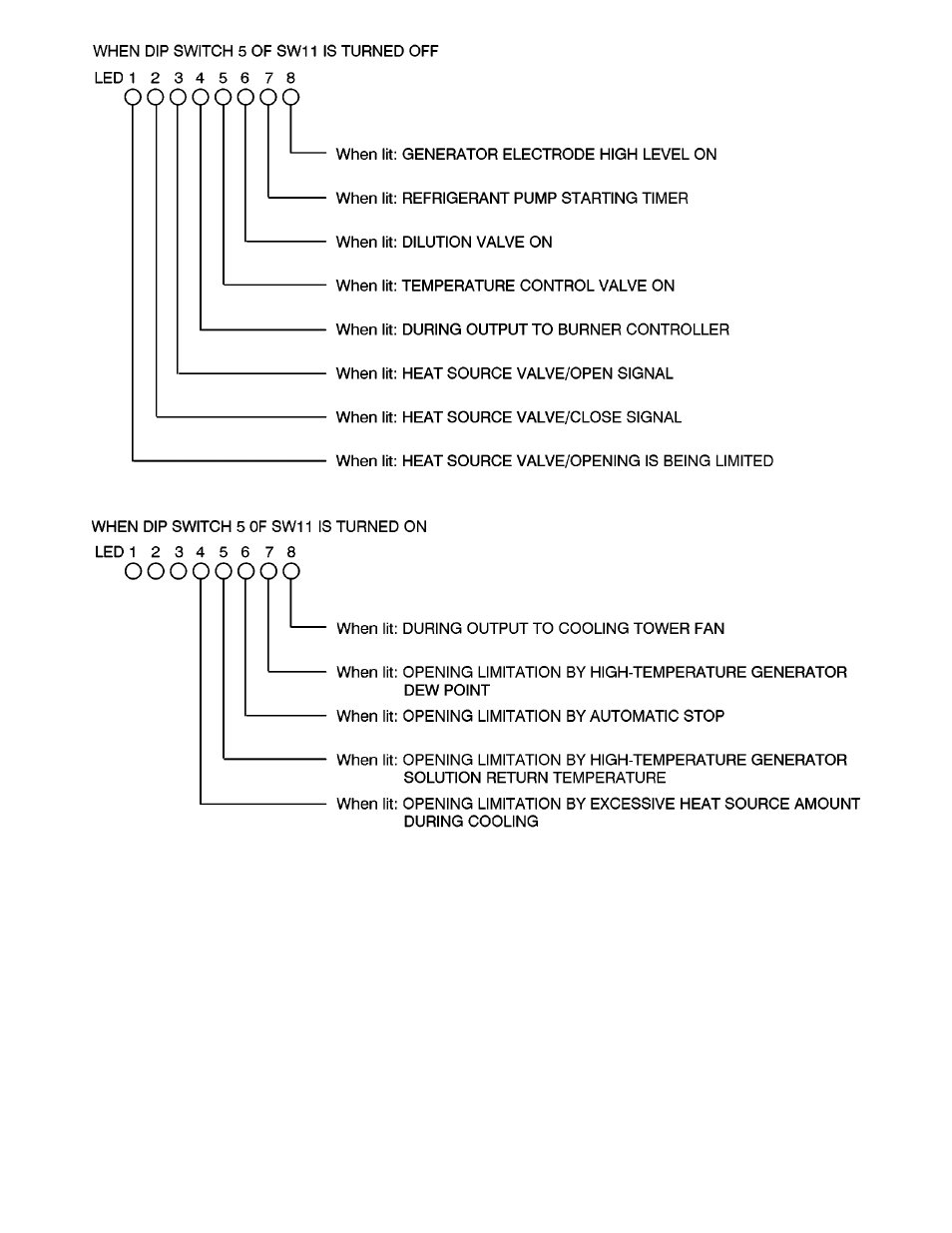

Fig. 17 — LED Indicator Lights Status
