Edge Lighting TruLine 1.6A, 24VDC - Plaster-In LED system - Manual (Page 7)

7
DRYWALL
2.25"
INSTALLATION
HEIGHT

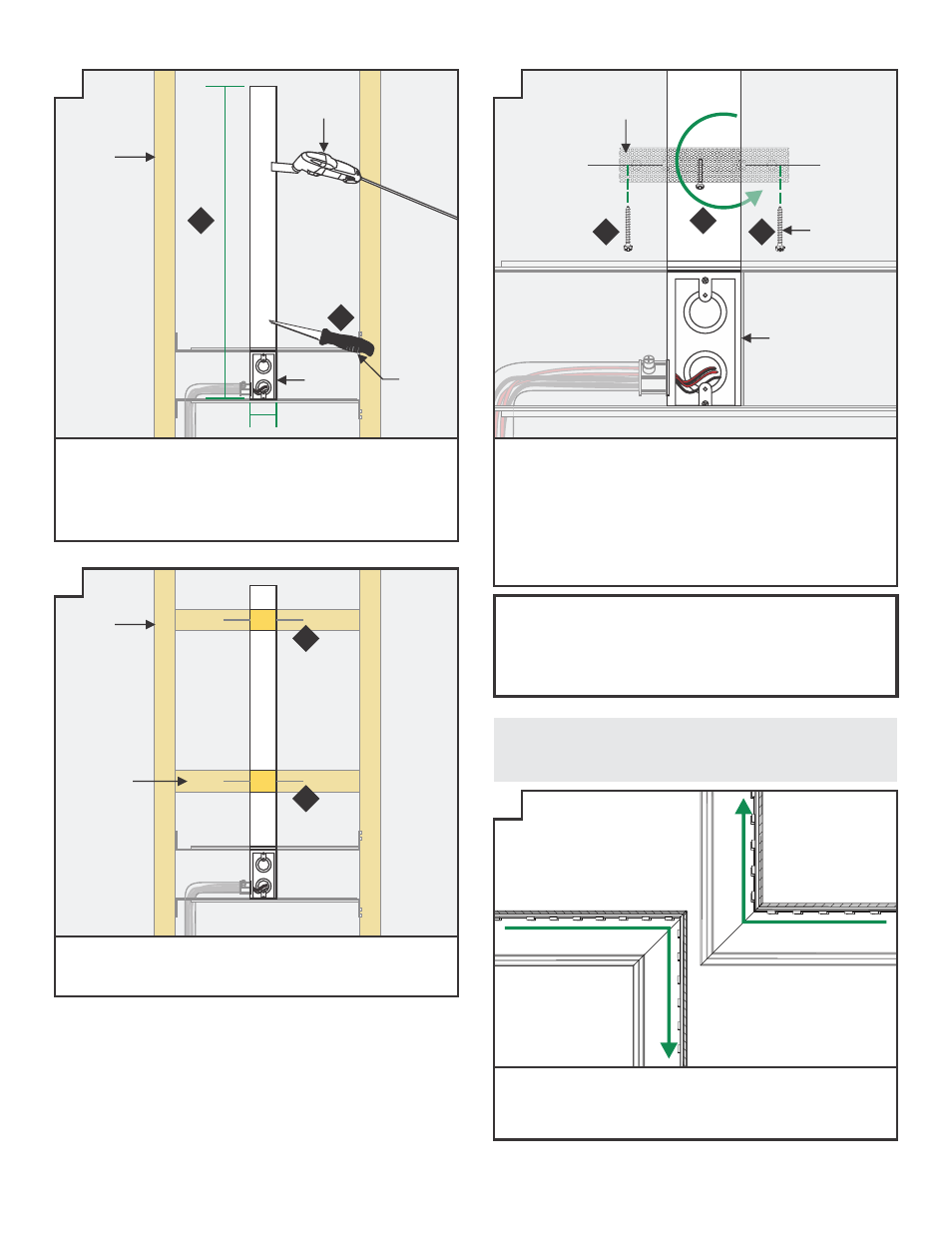

5: Mark the area where the channel will be located on the
drywall.
6: Cut out the marked area using appropriate tools.
7: Install & finish drywall.
8: Install mounting straps behind the drywall (suggested
spacing is every 32") by threading a drywall screw into
the perforated material.
9: Place the mounting strap behind the cut drywall and rotate
into place using the drywall screw as a handle.
10: Secure the mounting strap to the drywall using two
drywall screws. Mark the location on the drywall.
DREMEL
MULTI-MAX
6" FIXED
JAB SAW
STUD
JUNCTION
BOX
ALTERNATE VERTICAL INSTALLATION OPTION:
11: Install 2x4 support braces (suggested spacing is every
32") before installing and finishing drywall.
STUD
SUPPORT
BRACE
Complete mounting, plastering,
painting, and LED strip installation
by following Steps 20 through 30 in
Section One
Section Four: Room-Wrapping
Configuration
INSTALLATION NOTES
Room-wrapping installations use LED strip bent 90° for inside
or outside corner configurations. Channel sections will be
miter cut on-site.
INSIDE CORNER
OUTSIDE CORNER
ASSEMBLED
CUTAWAY VIEW
S T
U
V
5
6
9
10 10
11
11
MOUNTING
STRAP
JUNCTION
BOX
DRYWALL
SCREW
