Edge Lighting Drop 2 Pendant - Manual

FJ-DROP2-_
A

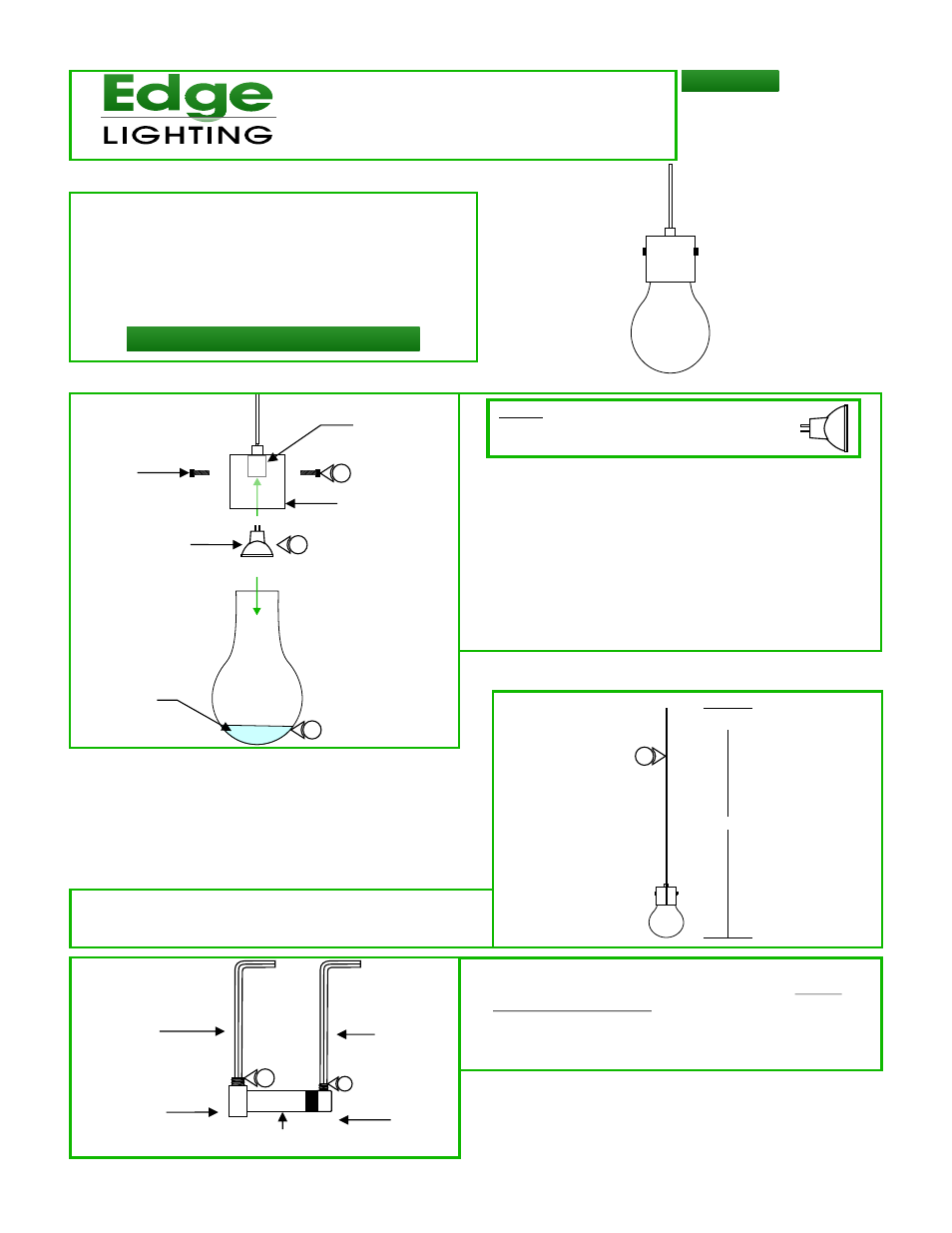

Installation Instructions for Fast Jack Drop 2
Install the Lamp
1
904-FJ-DROP2-01
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]
1: Loosen and remove two thumb screws to remove the fixture
shade.
2: Align the MR11 lamp pins to with the socket holes. Push the
lamp pins completely into socket holes.
3: If desired, fill the shade with up to 1" of water.
4: Replace the fixture shade into the socket cap. Align the
socket cap holes with the fixture shade holes and tighten the
thumb screws.
© 2014 Edge Lighting. All Rights Reserved.
1
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS
- Use this fixture indoors only.
- This product must be installed by a qualified electrician.
- Make sure power to the system is turned OFF before
installing the fixture.
- This product is used with Monorail, Monorail 2 Circuit, and
Fast Jack canopy systems.
NOTE: Use MAXIMUM 3 Watt 12 VAC MR11
LED lamp or MAXIMUM 12/24VAC halogen
lamp.
Adjust the Fixture Height
B
1: Cut the coaxial cable to the desired height (H) with a sharp
cutter. The overall fixture height is measured from the
bottom of the glass shade to the end of the coaxial cable.
H
1
C
M4 SET SCREW M3 SET
SCREW
1.5MM ALLEN
WRENCH 2MM ALLEN
WRENCH
2
3
COAXIAL FIXTURE
CONNECTOR
2: Loosen the M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not
remove this set screw.
3: Remove the M3 set screw on tip of the connector with the
1.5mm Allen wrench provided.
MR11 LED
BI-PIN
LAMP
SOCKET
2
3
THUMB
SCREW
WATER
(OPTIONAL)
SOCKET
CAP
