Edge Lighting TruLine 1.6A, 24VDC - Plaster-In LED system - Manual (Page 6)

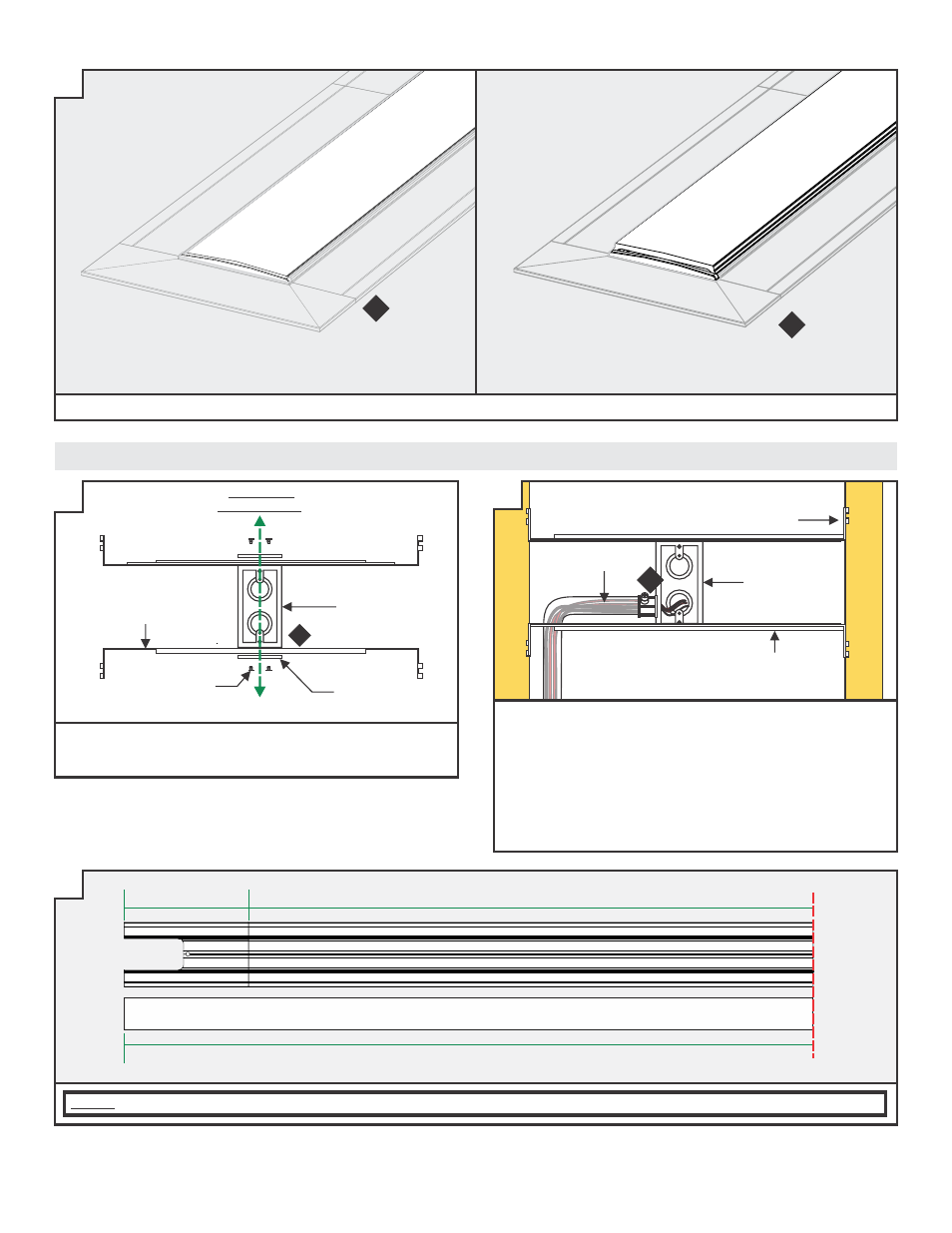

27: Snap the lens back onto the channel. Ensure lens is fully seated.
O
CORRECT
6
27
27
NOT INSTALLED
CORRECTLY
Section Three: Vertical Installation
JUNCTION
BOX
MOUNTING
BRACKET
ADJUSTABLE
MOUNTING BAR
PHILLIPS
SCREW
VERTICAL
ORIENTATION
1
1: Mount each adjustable mounting bar to one side of the
junction box and secure them with the mounting brackets
and two Phillips screws provided.
STUD
ADJUSTABLE
MOUNTING BAR
CONDUIT
JUNCTION
BOX
2: Remove a knockout to install the power line conduit (if
required by local electrical code.
3: Install the conduit and run the low voltage 24V DC power
wires coming from the remote power supply to the
junction box.
4: Refer to the instruction provided with the power supply
along with the wiring diagram for proper wiring.
NOTE: If cutting channel to length, ensure that the lens is also cut to match the total length of the installation.
R
STARTER
SECTION CHANNEL
SECTION
CUT LENS LENGTH TO TOTAL LENGTH
INST
ALLA
TION
DIRECTION
P Q
3
