Edge Lighting TruLine 1.6A, 24VDC - Plaster-In LED system User Manual
Page 12
12

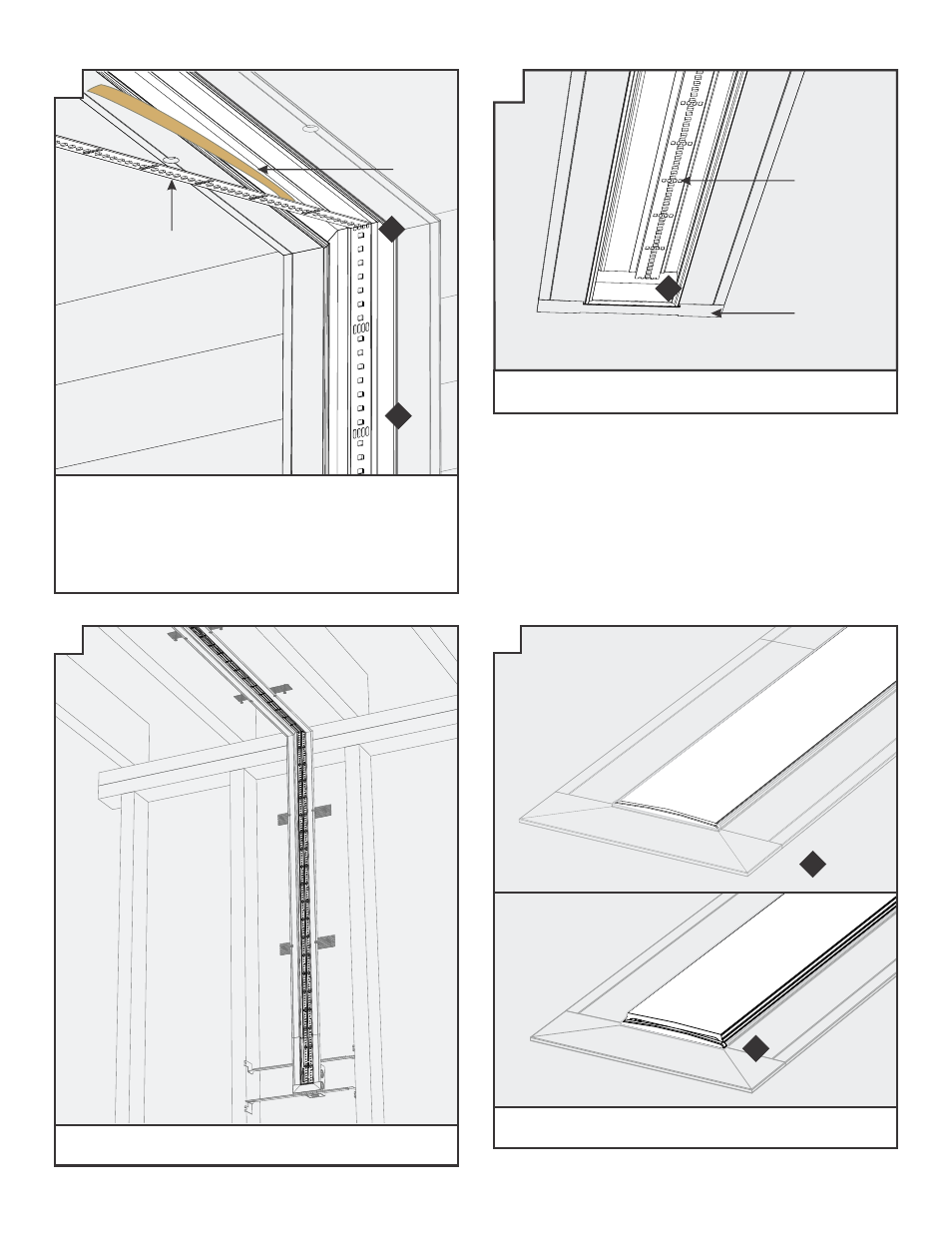

29: Continue removing the paper backing from the soft strip
and installing along channel, pressing adhesive into
place using ONLY a finger.
30: Bend the soft strip to match the installation corner. Ensure
the entire length of the channel is covered with Soft Strip
to avoid unlit areas.
32: Repeat Steps 26 through 31 to install the second LED soft
strip to the channel.
31: If required, trim the soft strip on the dashed cutting lines.
Place the excess soft strip inside the take-up box.
Z13
Z14
Z15
CORRECT
33
NOT INSTALLED
CORRECTLY
33:
Snap the lens back onto the channel sections. Ensure lens is fully
seated.
33
Z16
LED SOFT
STRIP
29
PAPER
BACKING
30
31
LED SOFT
STRIP
TAKE-UP
BOX
