Edge Lighting Vespa - Manual

SAVE THESE INSTRUCTIONS!
M-VES-_
- This product is ETL listed for indoor dry locations.
- This product is not restricted to certain height installation.
It is approved to be used at any height above the floor.
- Applicable accessories are Hexcell Louver, Glass Lenses,
Little Shady Mesh Back Shade, Little Shady Solid Back
Shade & Round Glass Back Shade.

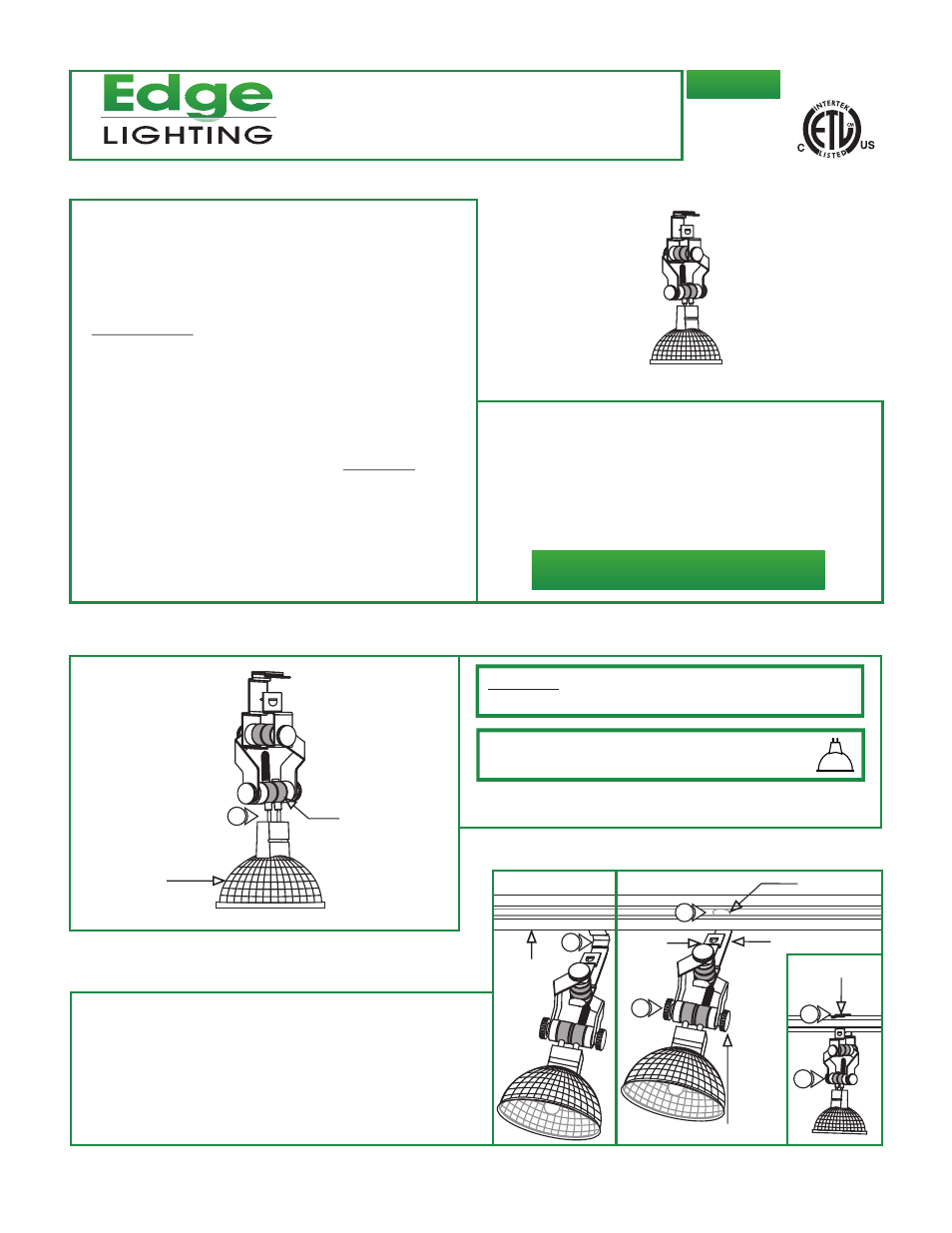

Monorail Vespa Installation Instructions for
1
904-VESPA-02
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]
IMPORTANT SAFETY INSTRUCTIONS
Install the Fixture
A
Use MAX 75 Watt, Type MR16 Front Glass Cover Halogen
Lamp.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
1: Push the MR16 lamp pins completely into the socket holes.
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Do not operate the luminaire with a missing or damaged
shield.
- Turn power off and allow to cool before replacing lamp.
1 SOCKET
MR16 LAMP
2: Place the open part of the fixture spring arms onto bottom of
the Monorail.
3: Rotate the fixture until the tab of the long spring arm snaps
completely onto the top of the Monorail.
4: After aiming the fixture lamp, tighten the two knurled screws
to ensure proper power connection.
B
2
SHORT
SPRING
ARM
LONG SPRING ARM
TAB
KNURLED SCREW
TAB
MONORAIL
3
3
4
4
© 2009 Edge Lighting. All Rights Reserved.
