Edge Lighting TruLine 1.6A, 24VDC - Plaster-In LED system - Manual (Page 4)

4
J
POWER FEED
JUNCTION BOX
18: Using the mark locations on the drywall, carefully make holes in the channel flange using the provided square drill with counter
sink bit.
19: Secure the channel to the stud through the drywall with the #6 screws using the provided square recess bit.
#6 SCREW
MARKING
19
ENDCAP

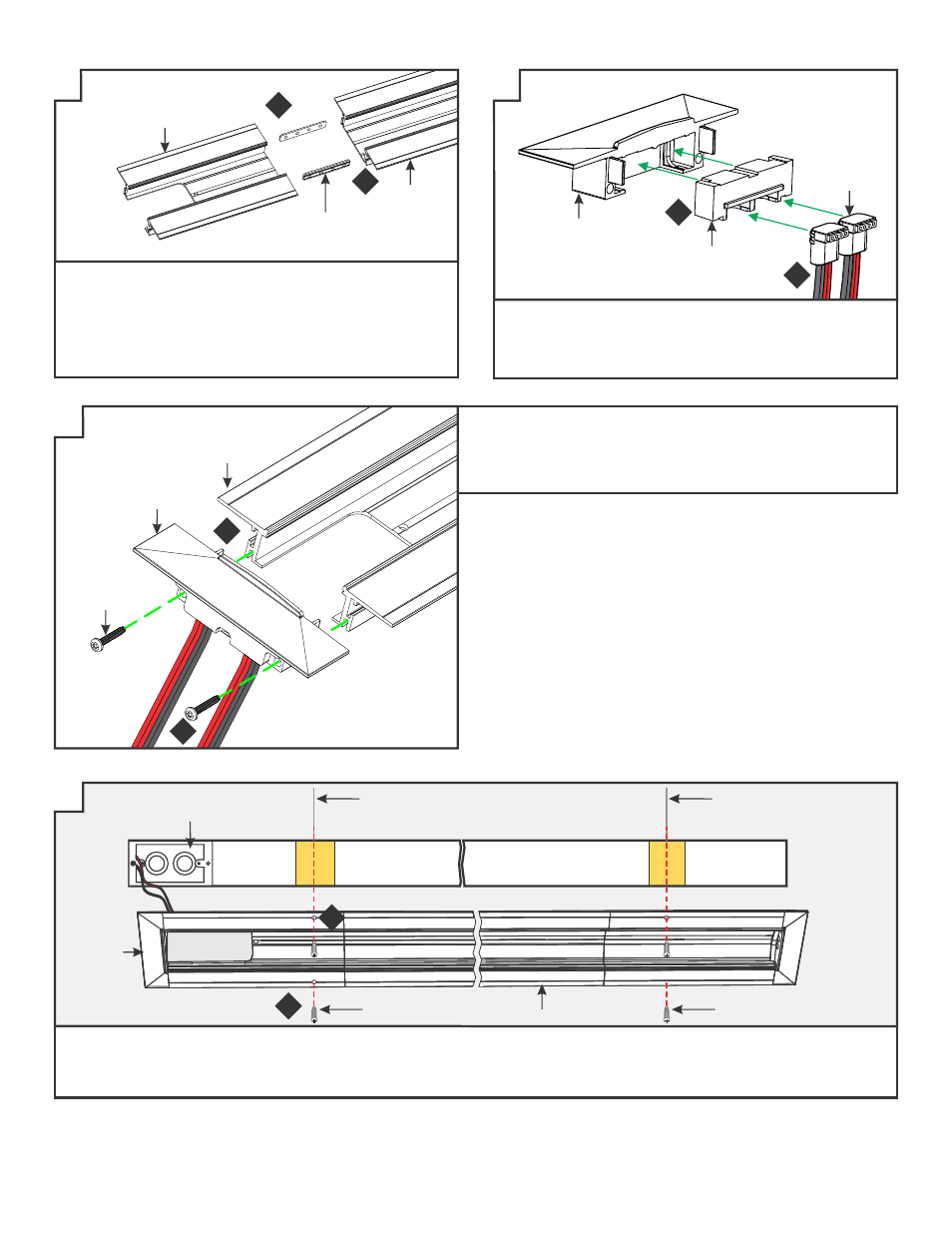

12: Insert the joiner bars halfway into the channel trap door
frame. Tighten the two #4-40 set screws on each joiner bar
with a 0.05" Allen wrench.
13: Slide the other section of channel onto the joining bars and
tighten the remaining #4-40 set screws with a 0.05" Allen
wrench.
G
14: Place both power connector into the end cap insert.
15: Slide the assembled end cap insert and power connectors
into the end cap.
16: Insert the #4-40 Torx screws through the end cap holes and
thread into the TruLine 1.6A channel.
17: Tighten the end cap to the channel using the provided T10
Torx screwdriver.
#6 SCREW
MARKING
CHANNEL
H
I
12
13
CHANNEL
JOINER
BAR
TRAP DOOR
FRAME
END CAP
END CAP
INSERT
POWER
CONNECTOR
END CAP
TRAP DOOR
FRAME
14
15
17
T10 TORX
16
18
