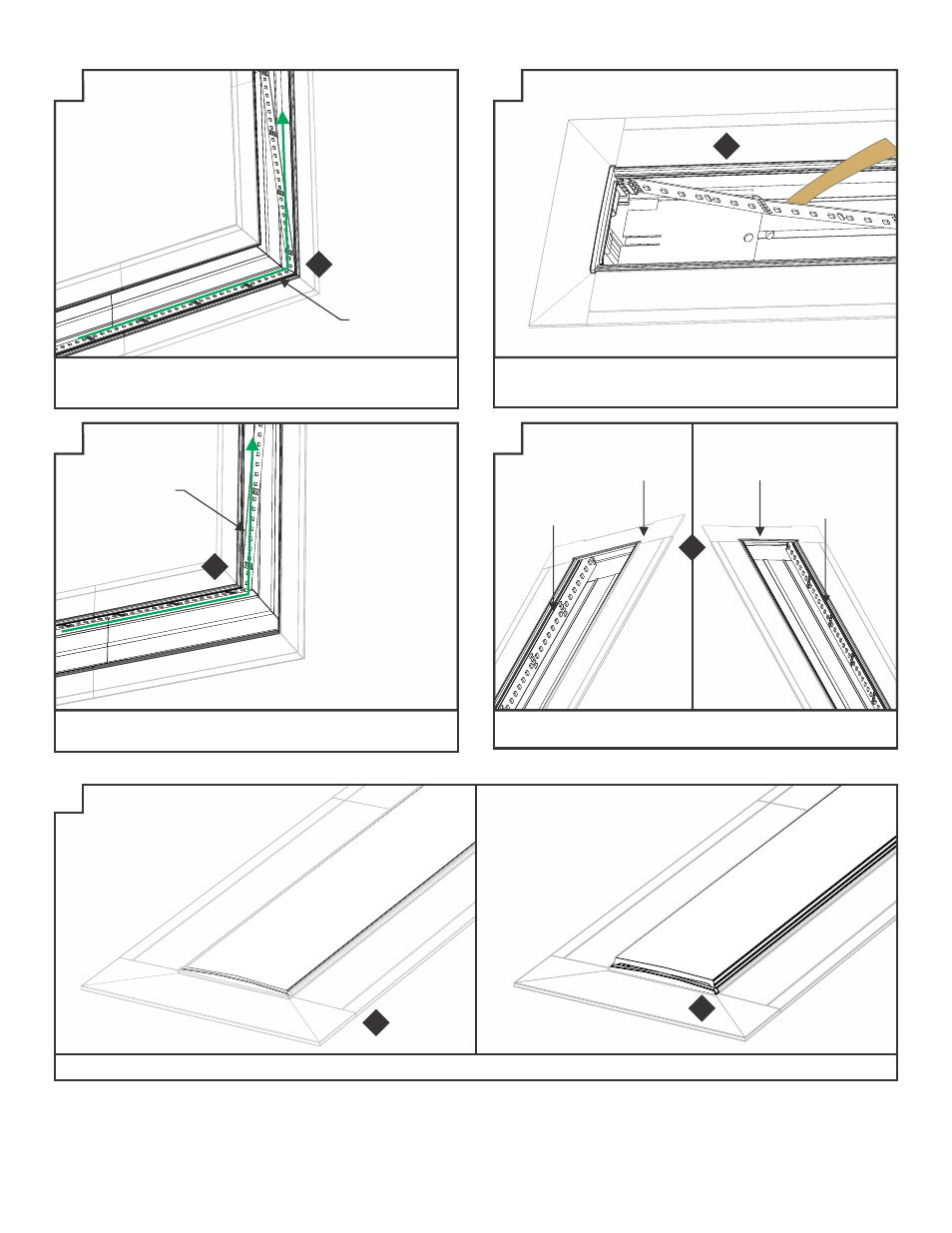

34: Continue applying LED soft strip in the side of channel.
Carefully bend the LED soft strip 90° to match the channel
corner. 35: Connect and install the second LED soft strip length for the
opposite side of the channel by following the same steps
as the first.
38: Snap the lens back onto the channel. Ensure lens is fully seated.
CORRECT
38
NOT INSTALLED
CORRECTLY
36: Continue applying soft strip in side of channel. Carefully
bend the soft strip 90° to match the channel corner. 37: Trim excess soft strip along the dotted cutting lines ONLY.
Place excess soft strip length into the channel take-up box.
34
LED SOFT
STRIP
35
36
LED SOFT
STRIP
TAKE-UP
BOX TAKE-UP
BOX
LED SOFT
STRIP
LED SOFT
STRIP
38
Z36 Z37
Z38 Z39
Z40
