Edge Lighting Rebel - Manual

SAVE THESE INSTRUCTIONS!
M-REB-_
FJ-REB-_
M2-REB-_
- This product is ETL listed for indoor dry locations.
- This product is not restricted to certain height installation.
It is approved to be used at any height above the floor.
- Applicable accessories are Hexcell Louver and Glass
Lenses.
A
1: Unscrew and remove the lamp housing from the socket
housing.
2: Screw the handle to the bottom of the socket housing.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 50 Watt, Type MR16 Front Glass Cover Halogen
Lamp.
B
3: Push the lamp pins completely into the socket holes.
4: Place maximum of two optional glass lenses or a combination
of hexcell louver and glass lens into the lamp housing.
5: Replace and screw the lamp housing to the socket housing.

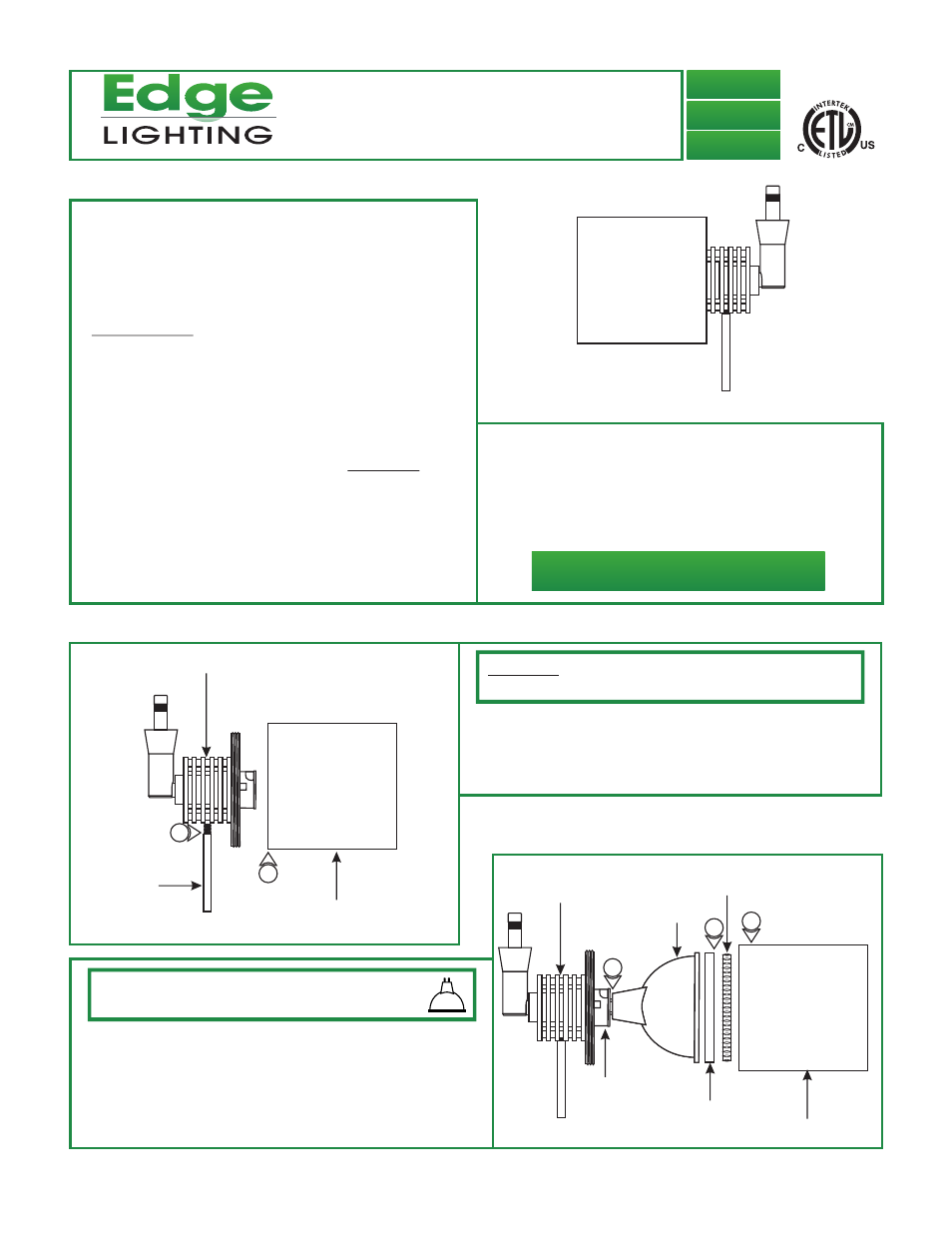

Rebel 1", 6", & 12" Installation Instructions for
Install the Lamp
1
904-REBEL-02
IMPORTANT INFORMATION
HANDLE
SOCKET HOUSING
LAMP HOUSING
1
2
SOCKET HOUSING
LAMP HOUSING
SOCKET
LAMP
HEXCELL LOUVER
GLASS LENS
3
4
5
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth. Oil from skin
may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Do not operate the luminaire with a missing or damaged
shield.
- Turn power off and allow to cool before replacing lamp.
IMPORTANT SAFETY INSTRUCTIONS
© 2009 Edge Lighting. All Rights Reserved.
