SAVE THESE INSTRUCTIONS!

1718 W. Fullerton Ave

Chicago, IL 60614

Tel: 773-770-1195

Fax: 773-935-5613

www.edgelighting.com

[email protected]

M-HAR-5-GO-_

FJ-HAR-5-GO-_

M2-HAR-5-GO-_

- This product is ETL listed for indoor dry locations.
- This product is not restricted to certain height installation.
It is approved to be used at any height above the floor.
- Applicable accessories are Hexcell Louver, Glass Lenses,
Gobo, and lens holder.

A

2: Place an optional optical accessary and lamp into the lamp
holder, and secure them by tightening the lens holder ring to
the lamp holder.

3: Push the socket completely onto the lamp pins.

Use

MAX

75

Watt, Type MR16 Front Glass Cover Halogen

Lamp.

CAUTION:

To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

B

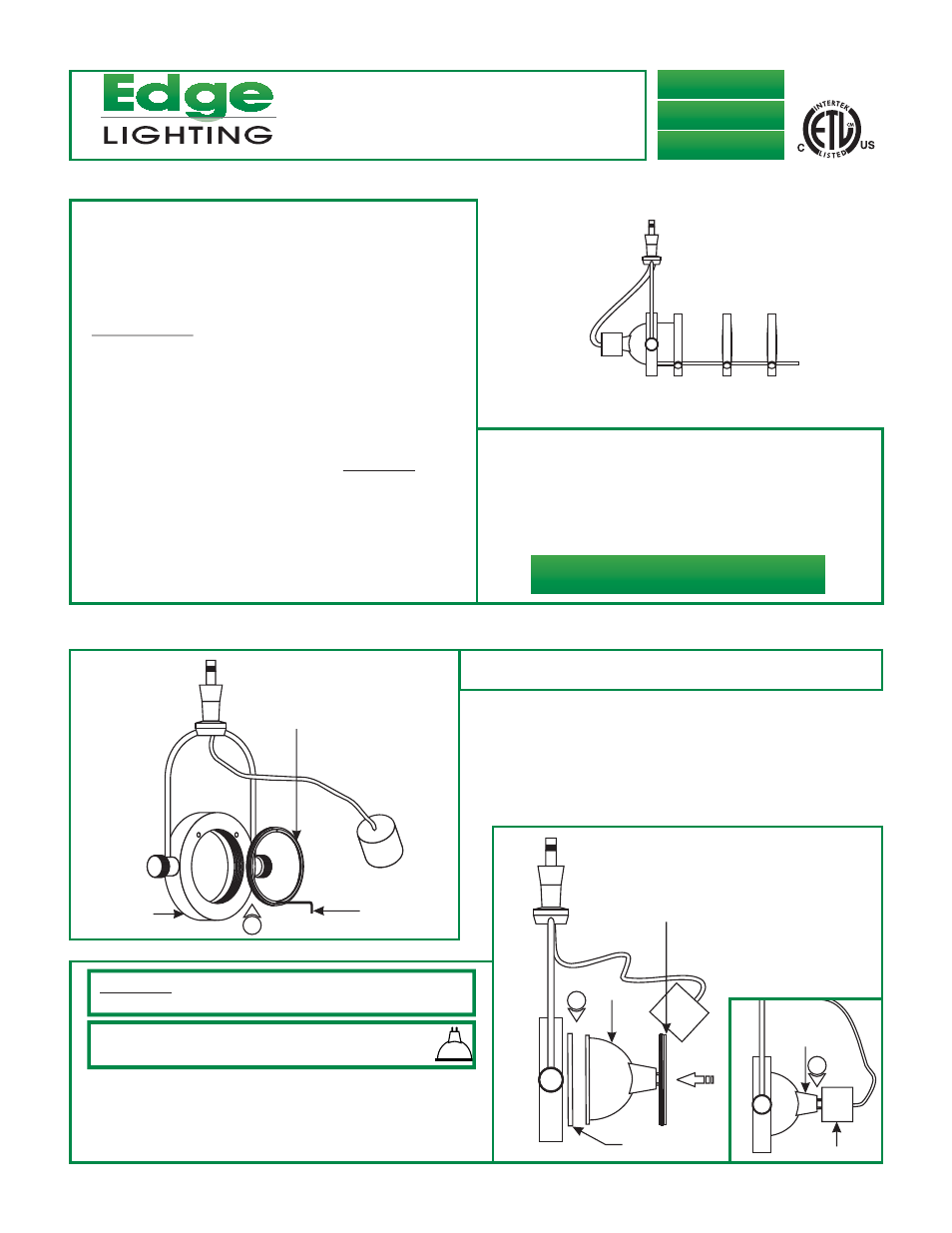

Installation Instructions for

Harley with Gobo Holder

Install the Fixture

1

904-HAR-5-GO-01

To reduce the risk of fire, electrical shock, exposure to

excessive UV radiation, or injury to persons:

- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth. Oil from skin
may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Do not operate the luminaire with a missing or damaged
shield.
- Turn power off and allow to cool before replacing lamp.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INFORMATION

© 2009 Edge Lighting. All Rights Reserved.

LENS HOLDER RING

ALLEN WRENCH

1:
remove the lens holder ring from the lamp holder.

Use a small Allen wrench or a pen point to loosen and

1

LAMP

SOCKET

LAMP HOLDER

LENS HOLDER RING

OPTICAL
ACCESSORY

LAMP

2

3
