Hi j k l – Edge Lighting TruLine .5A, 24VDC - Plaster-In LED System User Manual
Page 4

TRAP DOOR
FRAME
CHANNEL
SECTION

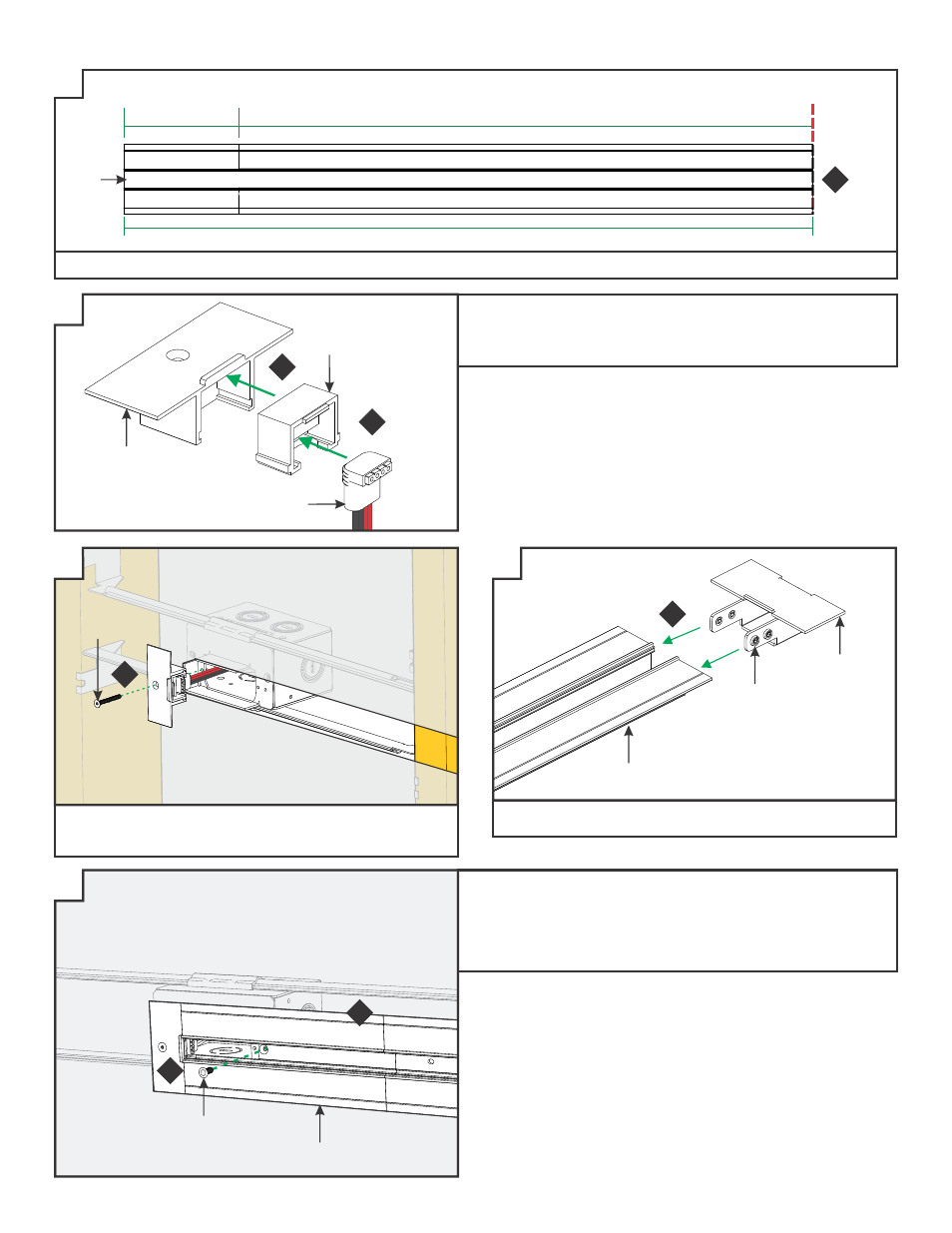

14: Cut the assembled trap door frame, channel, and lens to match the desired lit installation length.
LENS
DESIRED LIT LENGTH
15: Place the power connector into the end cap insert.
16: Slide the assembled end cap insert and power connector into
the end cap.
15
17: Secure the assembled power connector end cap to the
junction box with the #4-40 screw using a 1.5mm Allen
wrench.
18: Slide the take-up box onto the non-power channel end and
tighten the M4 set screws.
19: Place the assembled channel to the cutout area on the wall
making sure to fully seat it against the power connector end
cap.
20: Attach the assembled trap door frame and channel to the
junction box using the #4-40 screw.
4
14
16
17
POWER
CONNECTOR
END CAP
INSERT
END CAP
#4-40
SCREW
TAKE-UP
BOX
CHANNEL
18
M4 SET
SCREW
19
20
#4-40
SCREW
TRAP DOOR
FRAME
H
I
J
K
L
