Z6 z7 z8 z9 – Edge Lighting TruLine .5A, 24VDC - Plaster-In LED System User Manual
Page 10

10

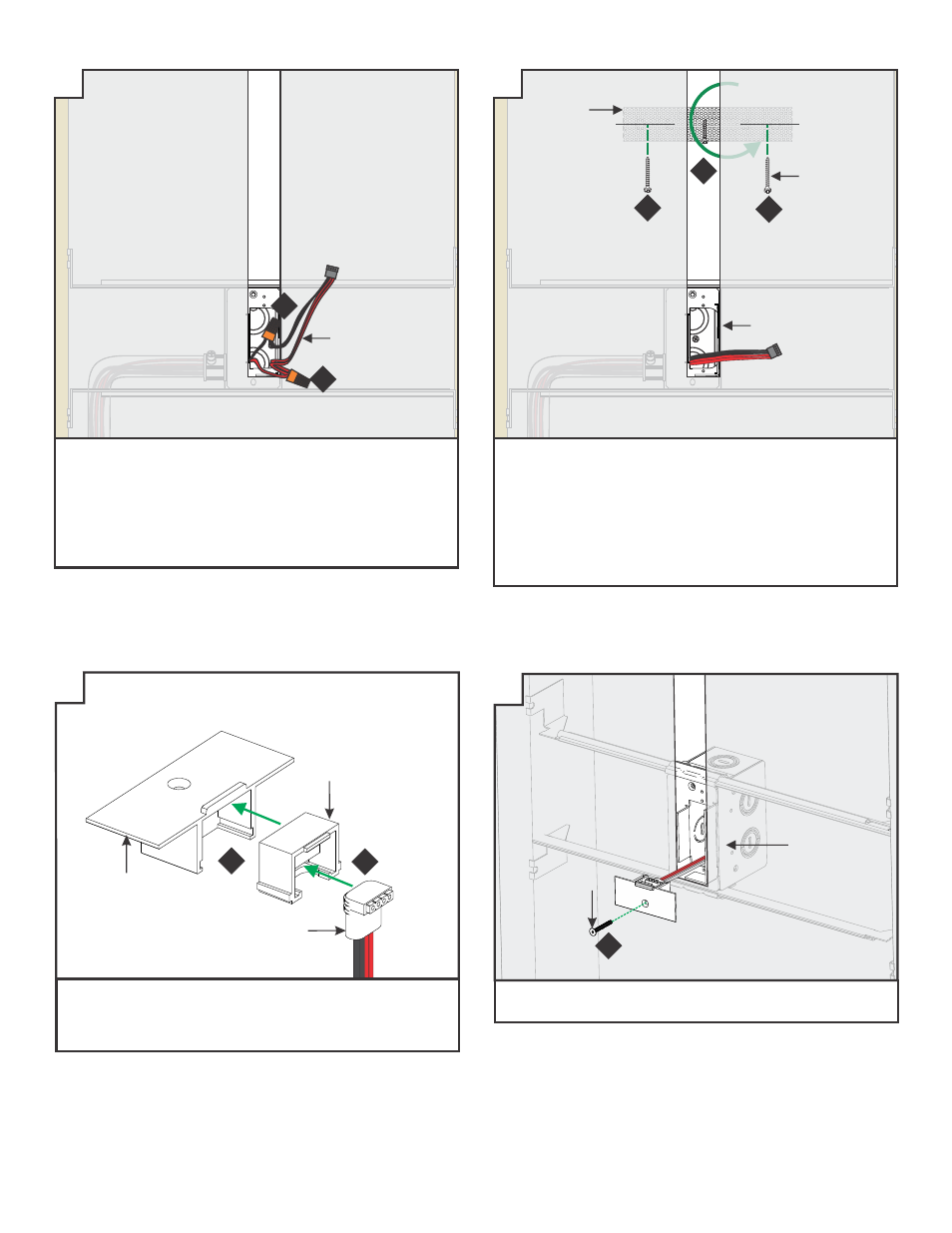

11: Install mounting straps behind the drywall (suggested
spacing is every 32") by threading a drywall screw into
the perforated material.
12: Place the mounting strap behind the cut drywall and
rotate into place using the drywall screw as a handle.
13: Secure the mounting strap to the drywall using two
drywall screws. Mark the location on the drywall.
12
13
13
MOUNTING
STRAP
JUNCTION
BOX
DRYWALL
SCREW
14: Place the power connector into the end cap insert.
15: Slide the assembled end cap insert and power connector
into the end cap.
14
16: Secure the assembled power connector end cap to the
junction box with the #4-40 screw.
JUNCTION
BOX
8: Connect the red power supply (24VDC+) wire to the red
power connector wires with a wire nut.
9: Connect the black power supply (24VDC-) wire to the
black power connector wires with a wire nut.
10: Place the wire nut connections inside junction box.
8
9
Z6
Z7
Z8
Z9
POWER
CONNECTOR
END CAP
INSERT
END CAP
15
#4-40
SCREW
JUNCTION
BOX
16
