Edge Lighting TruLine .5A, 24VDC - Plaster-In LED System User Manual
Page 17

17

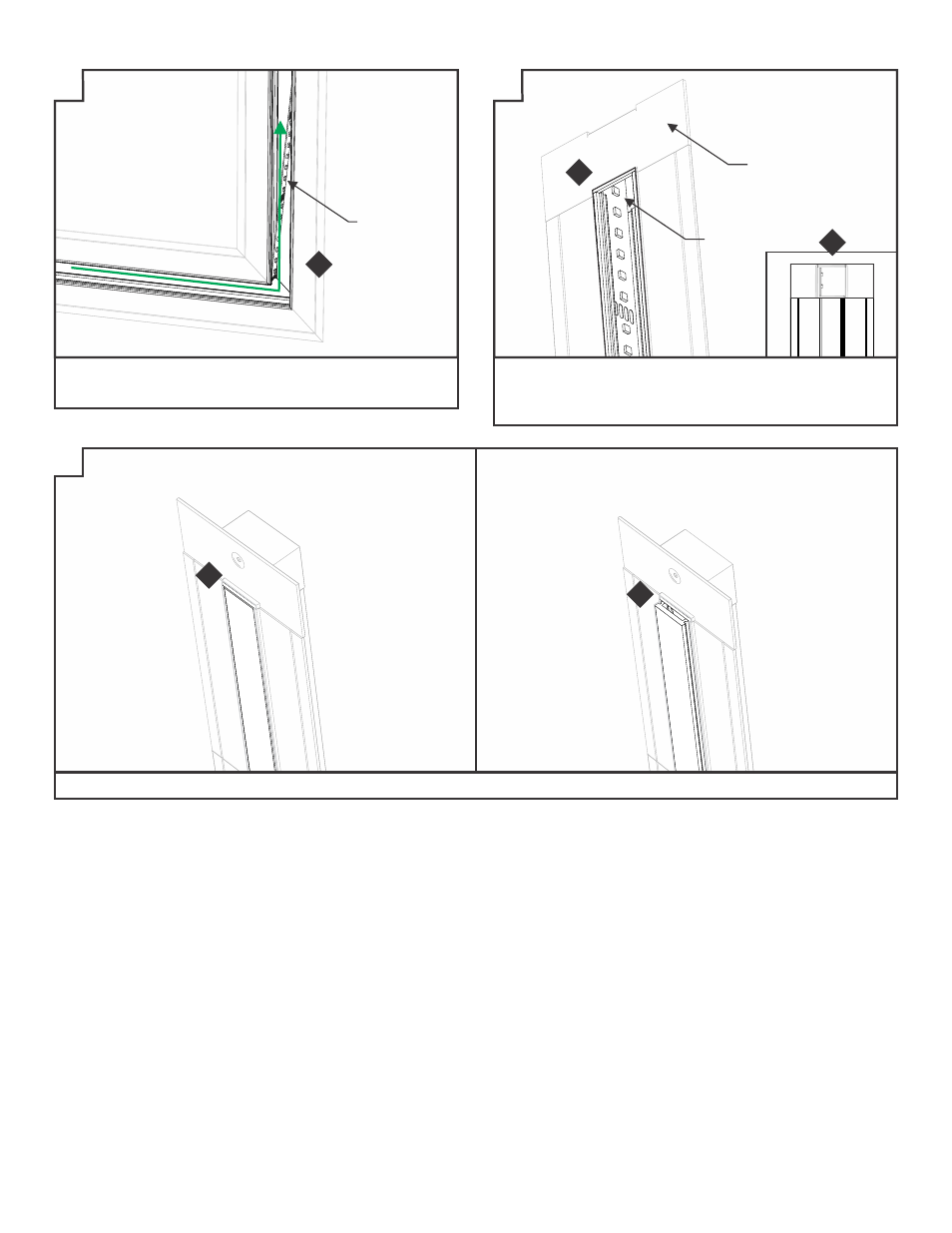

30: Continue applying LED soft strip in the side of channel.
Carefully bend the LED soft strip 90° to match the channel
corner.
30
LED SOFT
STRIP
Z36
31
LED SOFT
STRIP
Z37
31: If required, trim the soft strip on the dashed cuttable
section, place the excess soft strip inside the take up box
(see inset). Ensure the entire length of the channel is
covered with Soft Strip to avoid unlit areas.
32:
Snap the lens back onto the channel. Ensure lens is fully seated.
Z38
31
TAKE-UP
BOX
NOT INSTALLED
CORRECTLY
CORRECT
32
32
