SENSOR RANGE VALUE OF Rx VALUE OF Ry
0
–
2.5V None required Leave out
0
–
5V 1 Kohm
¼
W metal film 1 Kohm
¼
W
metal film
0
–
10V 3.3 Kohm
¼
W metal
film
1 Kohm
¼
W
metal film
NOTE: You may be able to use the AUX 1 connector to supply the
power to the analog sensor. Please refer to Auxiliary Connectors on
page 28 for more information.
Intelligent Inputs (if installed)

SDI-12: Please refer to Appendix I: SDI-12 Operation on
page 108 for SDI-12 connection and operation details.
Auxiliary Connectors

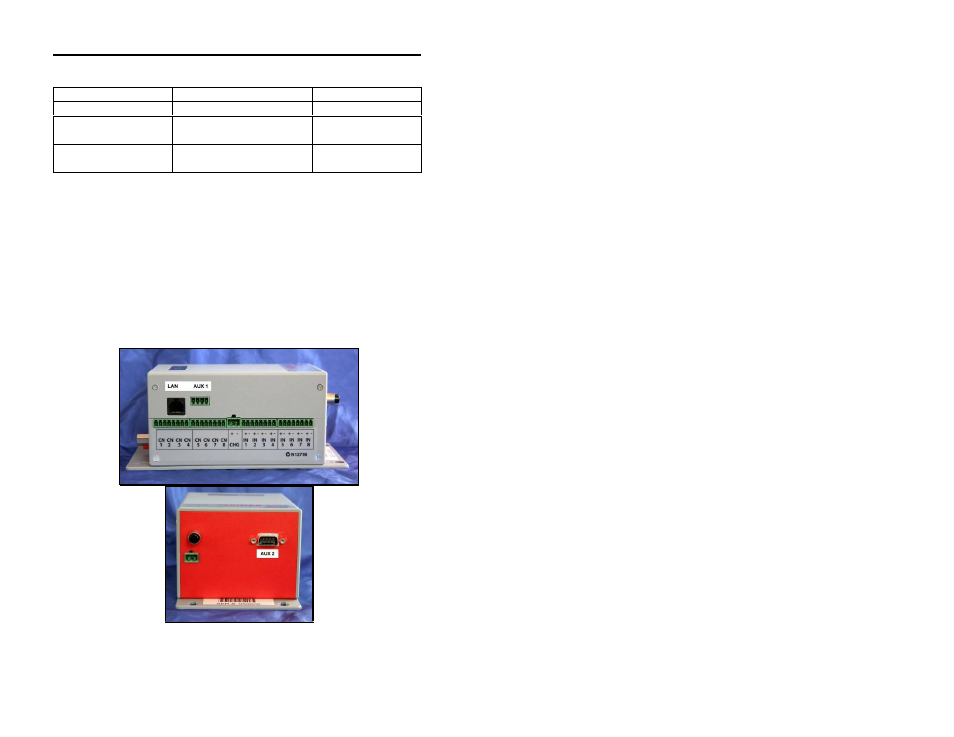

SPIDER AUXILIARY CONNECTORS
