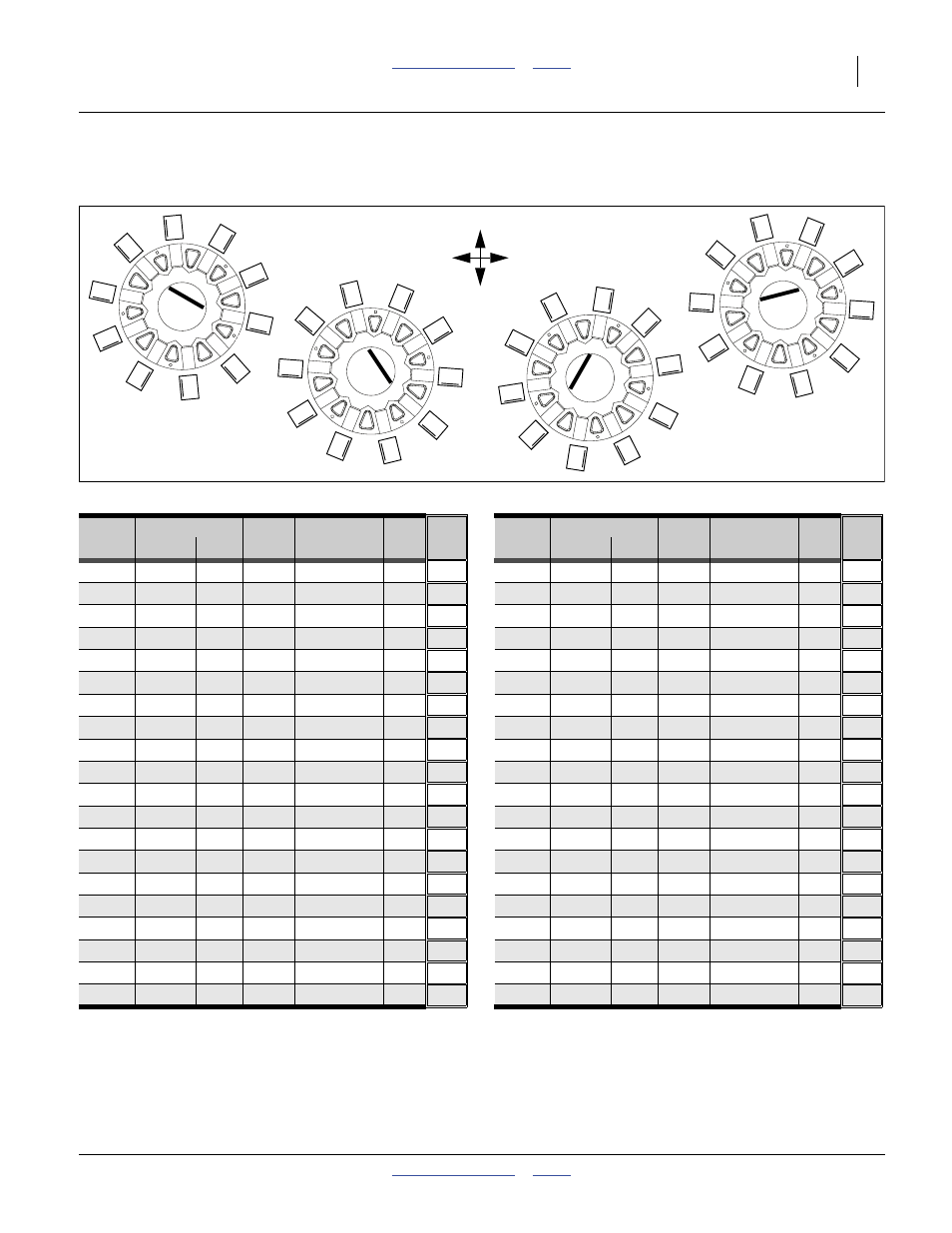

Turrets, 40-Row, Double-Shoot, Fertilizer
40-Row, Fertilizer
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P01
P02 P03
P04
P05
P06
P07 P08
P09
P10
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10 P01
P02
P03
P04
P05
P06 P07
P08
P09
P10
F
B
L R
U
E
U
F
U
G
U
H
18
16
14
12
11
13
15
17
19
20
80
78
76
74
72
71
73
75
77
79
60
58
56
54
52
51
53
55
57
59
38
36
34
32
31
33
35
37
39
40
Row Hose Length Tower Sensor Ext. Drop Row Hose Length Tower Sensor Ext. Drop
Drop Metric Inch -Port Lead Lead No. Drop Metric Inch -Port Lead Lead No.
R01(F) 157 cm 62 in. E-P08 WSMB4-01 - 41 R21(F) 168 cm 66 in. G-P01 WSMB5-09 - 61
R02(F) 152 cm 60 in. E-P07 WSMB4-02 - 42 R22(F) 137 cm 54 in. G-P10 WSMB5-10 - 62
R03(F) 147 cm 58 in. E-P09 WSMB4-03 - 43 R23(F) 137 cm 54 in. G-P02 WSMB5-11 - 63
R04(F) 142 cm 56 in. E-P06 WSMB4-04 - 44 R24(F) 137 cm 54 in. G-P09 WSMB5-12 - 64
R05(F) 142 cm 56 in. E-P10 WSMB4-05 - 45 R25(F) 137 cm 54 in. G-P03 WSMB5-13 - 65
R06(F) 142 cm 56 in. E-P05 WSMB4-06 - 46 R26(F) 142 cm 56 in. G-P08 WSMB5-14 - 66
R07(F) 137 cm 54 in. E-P01 WSMB4-07 - 47 R27(F) 142 cm 56 in. G-P04 WSMB5-15 - 67
R08(F) 137 cm 54 in. E-P04 WSMB4-08 - 48 R28(F) 163 cm 64 in. G-P07 WSMB5-16 - 68
R09(F) 137 cm 54 in. E-P02 WSMB4-09 - 49 R29(F) 163 cm 64 in. G-P05 WSMB6-01 +15ft 69
R10(F) 137 cm 54 in. E-P03 WSMB4-10 - 50 R30(F) 168 cm 66 in. G-P06 WSMB6-02 +15ft 70
R11(F) 163 cm 64 in. F-P07 WSMB4-11 +15ft 51 R31(F) 173 cm 68 in. H-P10 WSMB6-03 - 71
R12(F) 152 cm 60 in. F-P06 WSMB4-12 +15ft 52 R32(F) 163 cm 64 in. H-P09 WSMB6-04 - 72
R13(F) 147 cm 58 in. F-P08 WSMB5-01 +3ft 53 R33(F) 157 cm 62 in. H-P01 WSMB6-05 - 73
R14(F) 147 cm 58 in. F-P05 WSMB5-02 +3ft 54 R34(F) 157 cm 62 in. H-P08 WSMB6-06 - 74
R15(F) 137 cm 54 in. F-P09 WSMB5-03 +3ft 55 R35(F) 152 cm 60 in. H-P02 WSMB6-07 - 75
R16(F) 142 cm 56 in. F-P04 WSMB5-04 +3ft 56 R36(F) 157 cm 62 in. H-P07 WSMB6-08 - 76
R17(F) 137 cm 54 in. F-P10 WSMB5-05 +3ft 57 R37(F) 163 cm 64 in. H-P03 WSMB6-09 - 77
R18(F) 142 cm 56 in. F-P03 WSMB5-06 +3ft 58 R38(F) 152 cm 60 in. H-P06 WSMB6-10 - 78
R19(F) 168 cm 66 in. F-P01 WSMB5-07 +3ft 59 R39(F) 163 cm 64 in. H-P04 WSMB6-11 - 79
R20(F) 137 cm 54 in. F-P02 WSMB5-08 +3ft 60 R40(F) 163 cm 64 in. H-P05 WSMB6-12 - 80
