48 NTA607HD or NTA2007HD Table of Contents Index Great Plains Manufacturing, Inc.
166-370M Table of Contents Index 05/25/2011
Connect WSMB #2
Refer to Figure 77 (on page 45) and Figure 80 (which is part
of the full harness diagram found on page 88 and 89)
281. If WSMB
(on Tower B) does not have a WSMB
harness connected, select one saved:
467981201A INT AG HARNESS, WSMB MODULE
Connect the 12-pin receptacle leads into
WSMB .
282. Connect the 4/6-pin CANbus plug leads into the
4/6-pin CANbus receptacle leads of the
467980141 extension harness from WSMB .
283. Select a saved:
467751330S1 16 ROW HARNESS
284. Connect the WSMB’s 12-pin plug leads into the
12-pin receptacle leads of the row harness .
285. Use cable ties to secure the row harness core to
Tower B.
286. Select eight saved 91 cm (3ft) extensions:
459680920 EXT. HARNESS 3’, FAN RPM
Connect these to harness sensor leads
9 through 16.
287. Connect the 3-pin sensor leads or extensions to
their respective seed row blockage sensors, per the
chart on page 86 and the diagram on page 88.

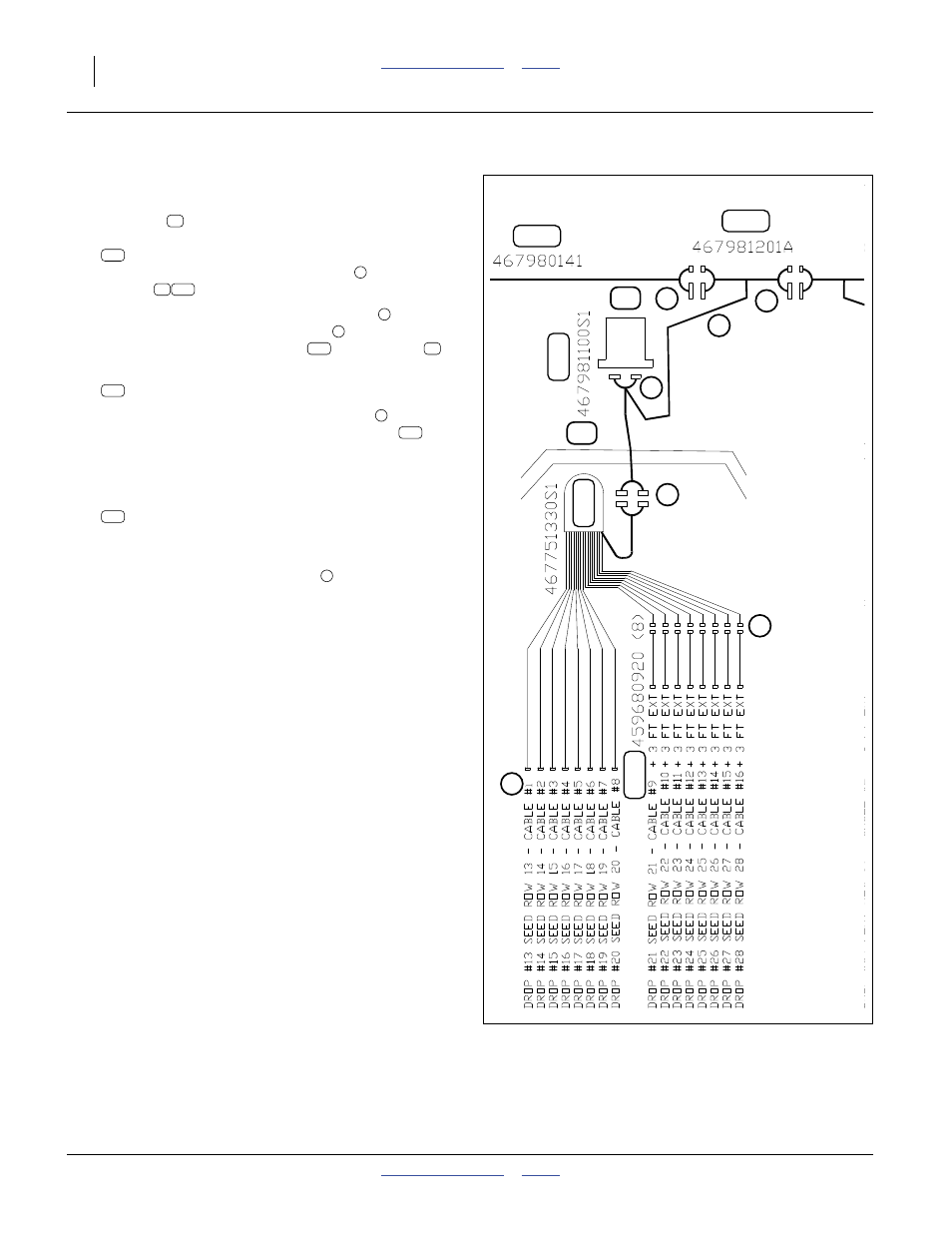

Figure 80: Tower B
WSMB #2 Connections
Q0118
WSMB
2
B
c
b
d
150
148
143 e
e
153
a
b
152
B
#2
153
c
#2 152
a
b
150 #4
148
d
148
143
e
