Update Cart
Cart Frame Update Overview
Twelve new parts are welded on the cart main frame,
and one on the tongue (not shown below):
Rear Gusset Plates (page 22)
266-307D REAR MAIN FRAME LAP GUSSET
Front Gusset Triangles (page 23)
266-308D FRONT MAIN FRAME CORNER GUSSET
266-309D FRNT MAIN FRAME CRNR CAP PLT
Pull Bar Anchors (page 25)
266-302D NTA2007 PULL BAR ANCHOR
A plate (not shown)
266-300D NTA2007 PULL BAR BOLT PLT
is also welded inside the tongue (page 24).
Meter Mount Tabs (page 27)
266-289D FRONT METER BOX MNT TAB

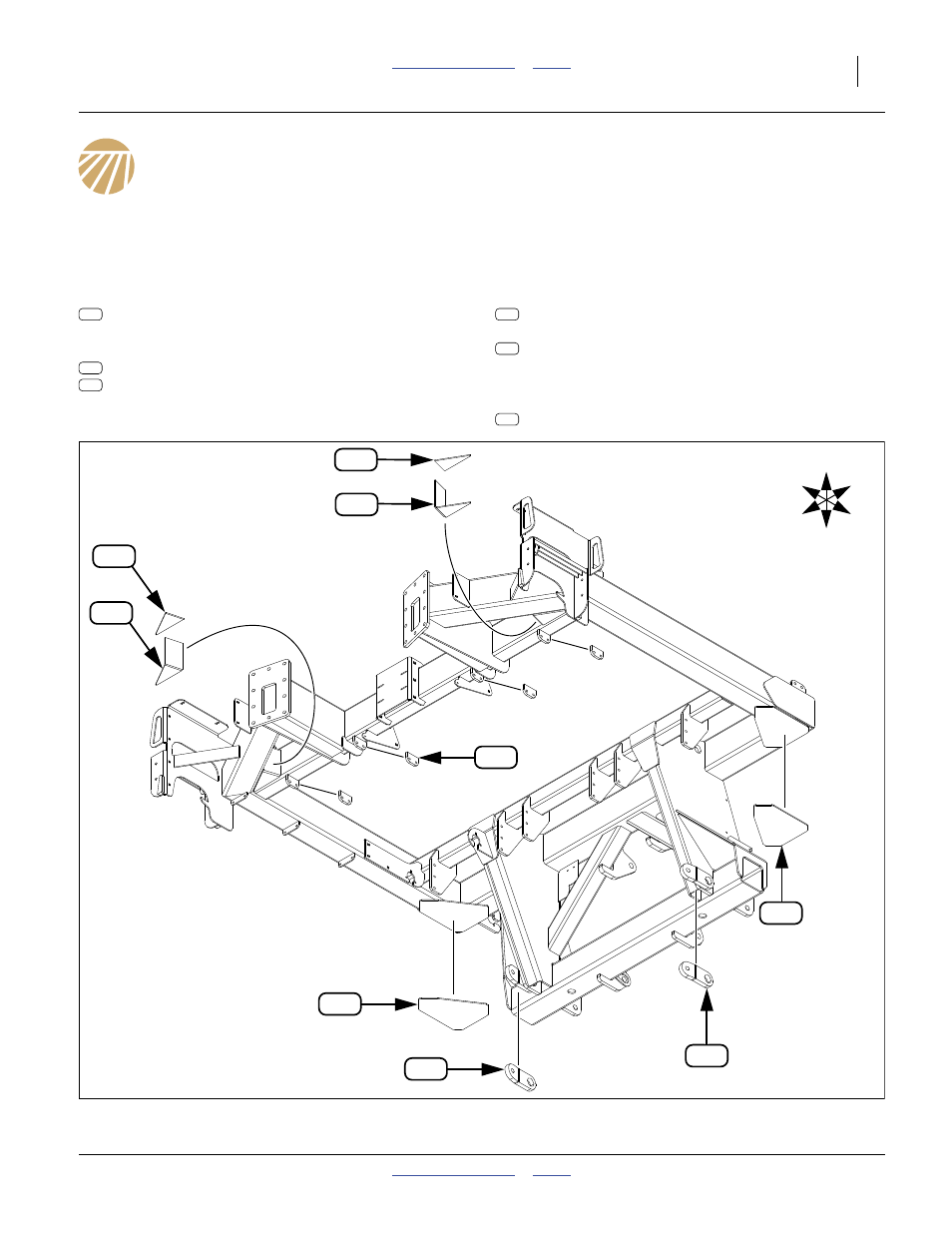

Figure 33
Cart Mainframe Update Weldments
32124
927
926
927
926
920
925
923
923
925
U
D
R
L
B
F
925
926
927
923
922
920
