Connect Lift Assist
Refer to Figure 86
317. Select two saved:
160-324H PIN WLDMNT 1.25 X 12.34 NR
318. Connect a hoist to the saved:
160-317H NTA607HD LIFT ASST FRAME WLMT
Bring the lower front lugs of the lift-assist
weldment
into alignment with the rear pivot
tubes of the new pull link . Insert pins .
319. Select two saved:
805-255C PIN ROLL 3/8 X 2 1/2 PLT
Drive roll pins into lower pin weldments .
Re-Install Parallel Arms
Refer to Figure 86
320. Select two saved:
160-314H REAR PARALLEL LIFT LINK WELDMT
and four saved:
160-201H WING PIVOT PIN WELDMENT
Pin the parallel arm tubes to the main frame in front,
and to the upper front lugs of the lift-assist weld-
ment at rear.
Note: Set the lift switch whisker above the arm tube.
321. Select eight saved:
804-039C WASHER FLAT 1 1/4 SAE PLT
and four saved:
805-255C PIN ROLL 3/8 X 2 1/2 PLT
Add three washers to each forward pin , and
one washer to each rear pin . Secure weldment
pins with roll pins .
Re-Connect Lights
Refer to Figure 87 (depicting NTA607HD)
322. Re-route the lighting harness dismounted at
step 204 on page 36. Connect each leg of the “Y” to
its respective luminaire. Secure the harness with
any clips saved at step 206.

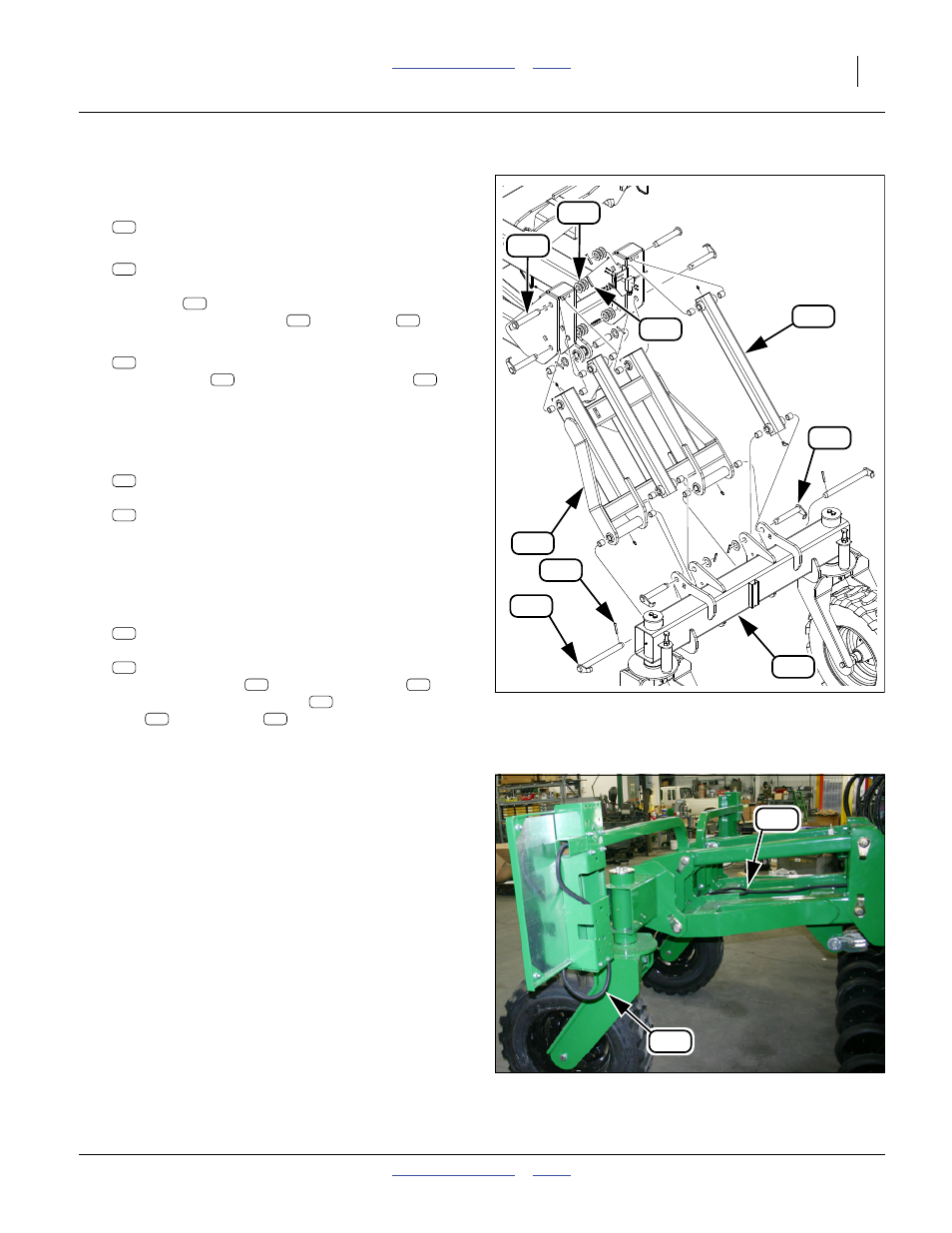

Figure 86
Connect Lift-Assist
Q0115
108
193
200
104
105
903
111
200
104
111
108
108
903 111
200
200 111
105
104
193
200
193 104
104
104 200
Figure 87
Re-Route Lighting Harness
Q0080
222
222
