28 NTA607HD or NTA2007HD Table of Contents Index Great Plains Manufacturing, Inc.
166-370M Table of Contents Index 05/25/2011
Re-Install Meters
Meters are loosely re-installed, with final positioning after
hoppers are re-installed. For each meter:
Refer to Figure 45
158. Select one updated meter
and six sets new:
802-106C RHSNB 1/2-13X1 1/2 GR5
804-113C WASHER FLAT 1/2 USS HARD PLT
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
159. With the meter in between the mounts ,
bring the meter sidewall slots into alignment with the
mount slots. Insert bolts
from the meter side.
Add a flat washer , lock washer and nut ,
loosely secured (bolts at bottom of vertical slots).
Install Hopper Supports
Refer to Figure 45 (and Figure 53 on page 33)
160. Select four new:
266-290D LOWER HOPPER SUPPORT ANGLE
Insert the notched leg of the support angles into the
tab slots
of the meter mounts . These are held
in place by the hoppers (installed starting on
page 33).
Install Pull Bars
Assemble Pull Bars
Refer to Figure 46
161. Select two sets:
166-368H NTA2007 PULL BAR
401-167H 16 ROW PULLBAR ADJUSTER
803-073C NUT HEX 1 1/2-6 PLT
Spin the jam nut well onto the adjuster .
Thread the adjuster a few full turns into the pull
bar
.
162. Remove and save the end pin components:
805-412C PIN CLEVIS 1 X 4.13 USBL
803-007C NUT LOCK 1/4-20 PLT
402-011D SLEEVE, SPRING LINK MOUNT
802-152C HHCS 1/4-20X2 GR5
805-134C PIN CLEVIS 1 X 2 29/64 USABLE
804-028C WASHER FLAT 1 USS PLT
805-058C PIN COTTER 3/16 X 2

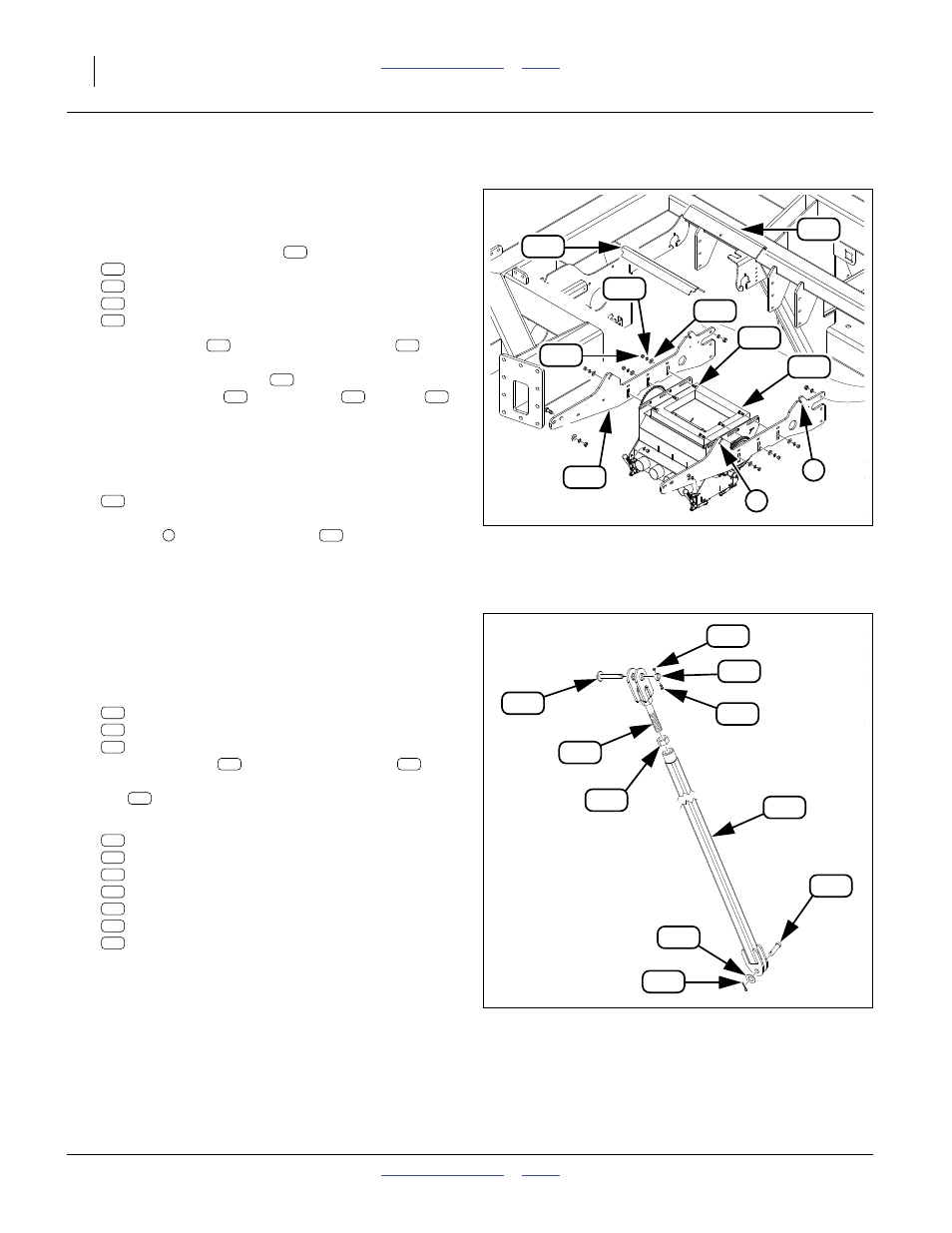

Figure 45
Hopper Supports
32131
960
919
956
950
945
124
921
921
8
8
124
945
960
956
950
124 919
945
960 956 950
921
8 919
Figure 46
Pull Bar Assembly & Parts ID
31098
916
928
952
967
949
946
929
965
962
958
916
928
952
952 928
916
967
949
929
946
965
958
962
