Update Meter Mounts
Position New Meter Mounts
The new meter mounts are temporarily installed to aid in
placement of the new front mount tabs.
Refer to Figure 41
142. Select four new:
266-288D METER BOX MOUNT
and six sets saved:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
802-082C HHCS 1/2-13X1 3/4 GR5
143. Loosely attach each mount to a rear mount tab
( through ), as follows:
Right side of tab (for left meter)
Left side of tab (for left meter)
Right side of tab (for right meter)
Left side of tab (for right meter).
Tabs and (single center meter) are not used.
Prepare Tab Welding Sites
Refer to Figure 42
144. Select one new:
266-289D FRONT METER BOX MNT TAB
Use this tab to mark the general locations for tab
welding on the underside of the front cart
cross-tube
. Remove the paint at these locations.

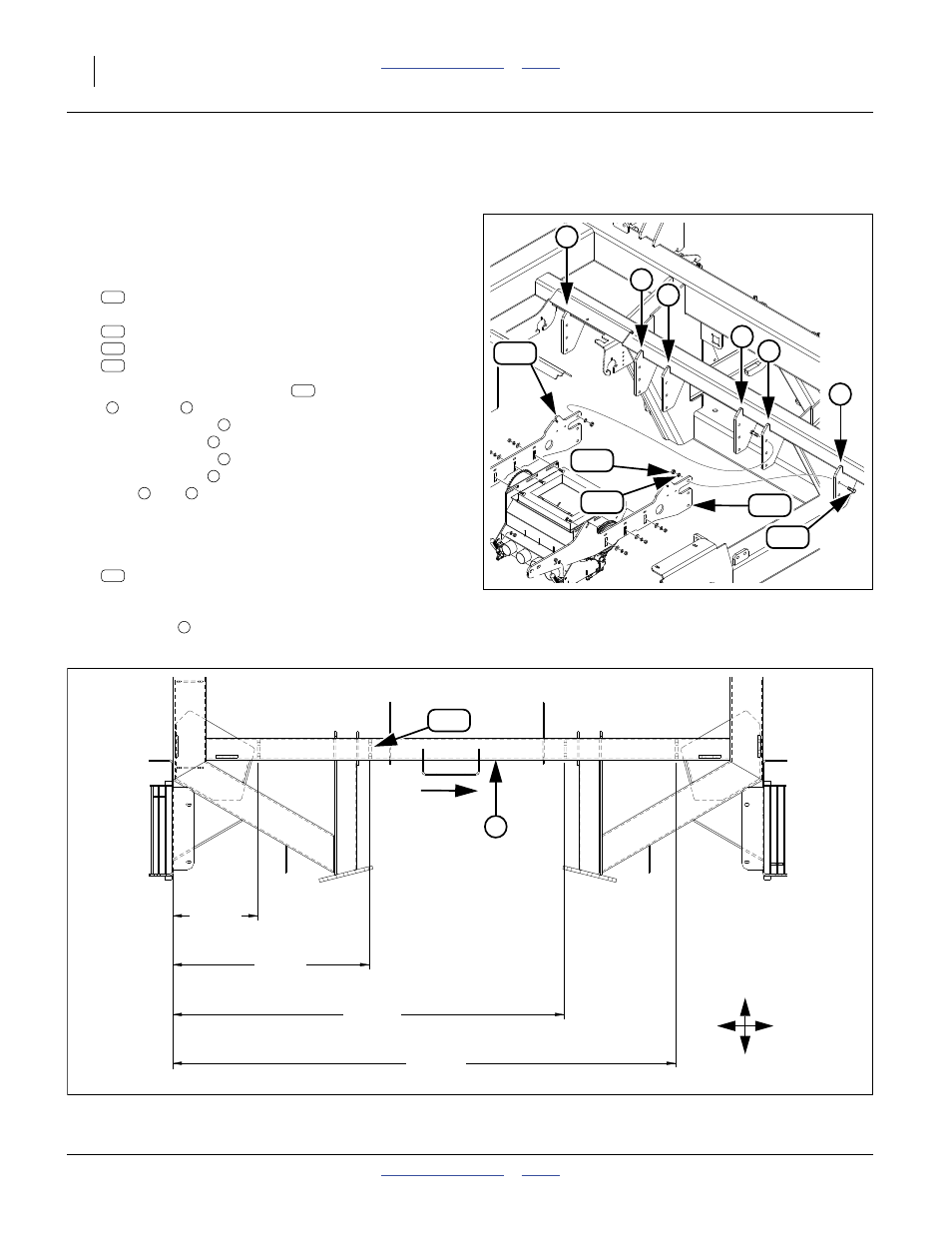

Figure 41
New Meter Mounts
32131
919
1
2
3
4
5
6
919
167
187
177
Figure 42
Front Meter Mount Tab Stations
32135
7
39.2 cm
15.44 in
90.9 cm
35.81 in
181.5 cm
71.44 in
233.3 cm
91.81 in
R L
F
B
920
919
177
187
167
919
1 6
1
2
5
6
3 4
920
7
