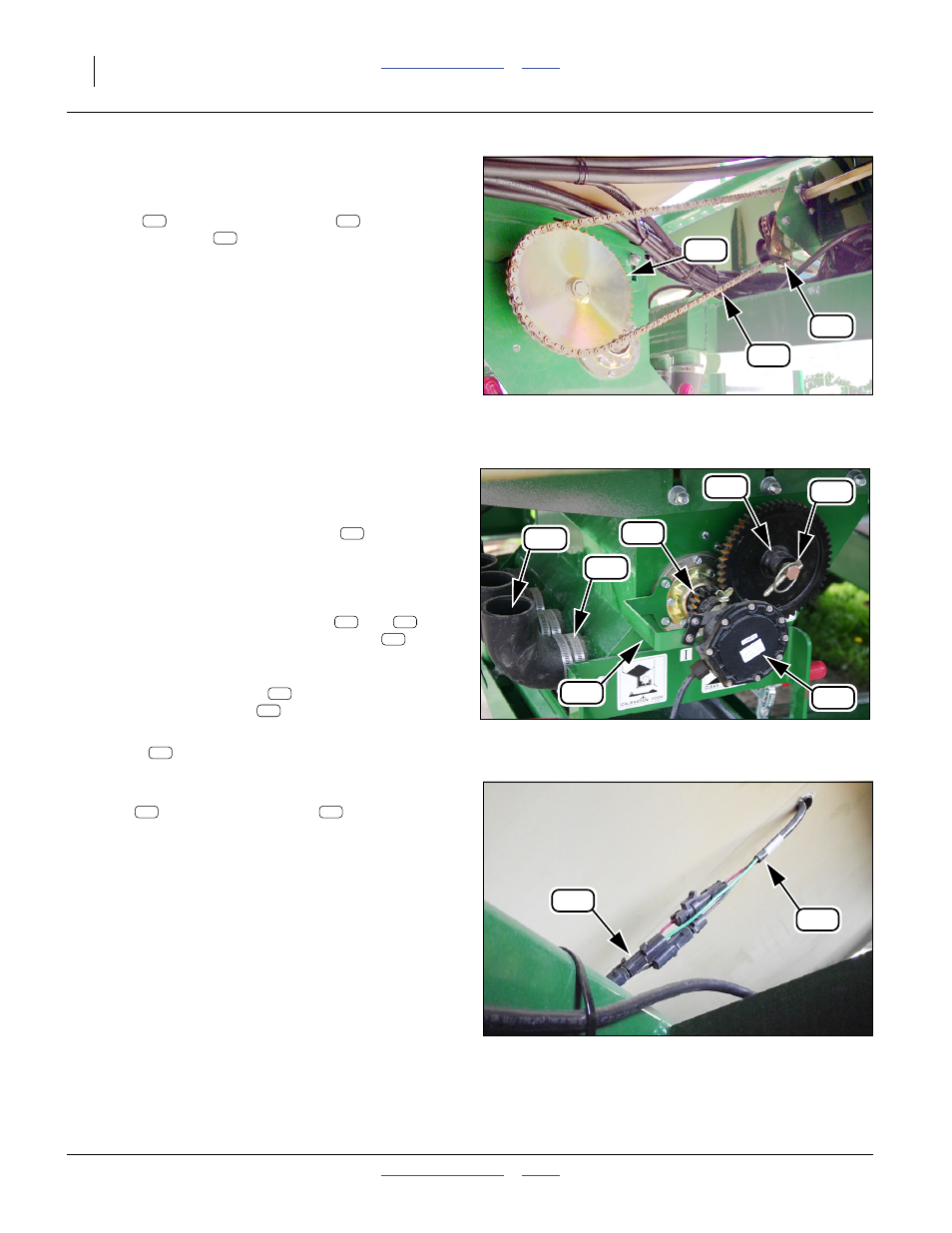

Re-Install Final Drive Chain
Refer to Figure 54
191. At the right end of each meter, re-mount the
chain on the meter input gear . Engage the
final drive idlers .
Re-Connect Inlets/Outlets
Refer to Figure 55 (which has the inlet manifold removed for
clarity)
192. Re-connect the meter inlet elbows
and primary
outlet hoses (not shown). Secure with saved
clamps.
Re-Install Gears
193. Re-install saved final drive gears ( and ).
Secure the driving gear with a saved pin .
Re-Install Sensors
194. Place the speed sensor on the driven shaft.
Secure with saved pin . Tighten thumbscrew.
195. Re-attach the anti-rotation strap to the sensor
mount .
Refer to Figure 56
196. At each hopper, re-connect the hopper level sensor
lead to the air cart harness .
Figure 54
Install Final Drive Chain
Q0033
129
221
102
102 129
221
Figure 55
Meter Elbows, Sensor, Gears
Q0109
219
160
198
130
204
145
139
219
130 204
198
145
198
139
Figure 56
Hopper Level Sensor Lead
Q0101
151
146
146 151
