Update Harness
Dismount Existing Harnesses
Although all of the existing harness components are
re-used, it is both simpler and faster to completely
remove them, and then re-install them. Start at Tower H
on the right wing.

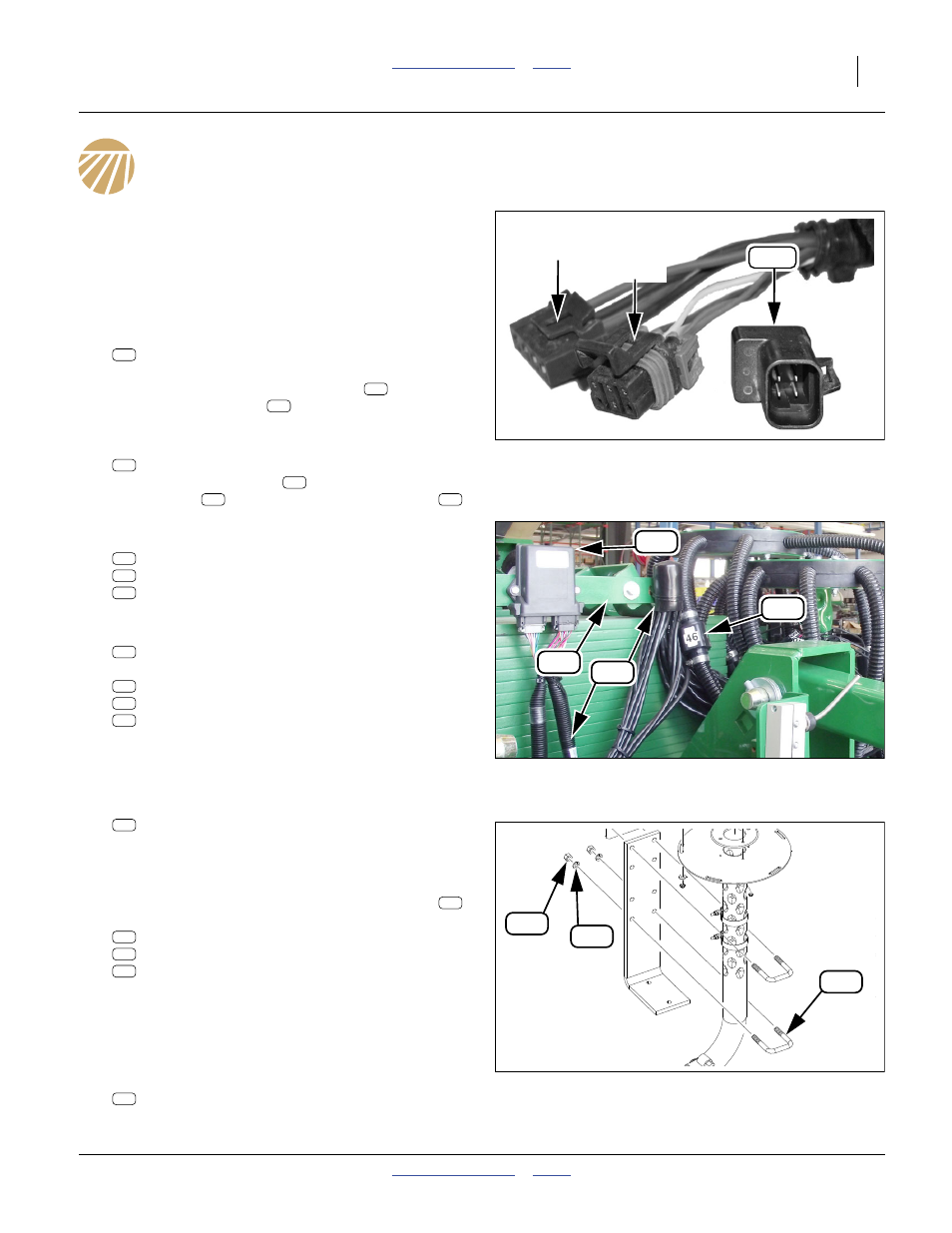

Refer to Figure 68 and Figure 69
246. Locate, remove and save the CANbus terminator:
467980126 MINI CAN TERMINATOR
There is only one of these. This component is con-
nected to one lead of a row harness
, which is
plugged into a WSMB (Working Set MemBer).
247. At the WSMB, disconnect and save the row har-
nesses:
467751330S1 16 ROW HARNESS
Disconnect row harness leads from the block-
age sensors , and from the WSMB harness .
248. Disconnect save any sensor lead extensions, which
may be one of (not shown in Figures):
457901815 DJ HARNESS 10 FT EXT 3 PIN WP
459680920 EXT. HARNESS 3’, FAN RPM
459680922 EXT. HARNESS 15’ FAN RPM
Leave the blockage sensors installed.
249. Dismount and save the WSMB
467981100S1 INTAG WSMB MODULE 18R
Save the following fasteners where encountered:
803-006C NUT HEX 1/4-20 PLT
804-006C WASHER LOCK SPRING 1/4 PLT
802-370C HHCS 1/4-20X1 3/4 GR5
Where WSMBs are mounted with
1 ⁄
4
-20 hex head
cap screws shorter than 1
3 ⁄
4
in (4.4 cm), these do
not need to be saved.
The WSMB harness:
467981201A INT AG HARNESS, WSMB MODULE
may be left connected to the WSMB.
Refer to Figure 70
250. Dismount the WSMB mounting brackets (except at
implement weights, where the cross-bar mount
may be left in place). Save all:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
806-010C U-BOLT 1/2-13 X 2 1/2 X 3 1/2
If the U-bolt is also securing the tower tube to its
mount, leave it in place. The bracket used to mount
the WSMB is not re-used.
251. Disconnect, dismount and save any CANbus exten-
sion cable to the next WSMB to the left (not shown
in Figures):
467980141 10’ EXT HARNESS
Figure 68
CANbus and Terminator
28429
149
CANbus
Power CANbus
Data
149
148
152
148
148
147 153
Figure 69
WSMB and Harness at Weights
Q0082
152
148
147
120
142
143
144
152
175
183
173
Figure 70
Tower Mounting Near Center
Q0127
177
187
201
153
120
177
187
201
150
