Update Cart Hydraulics
This section splits the shared fan/fold hydraulic circuit
into separate dedicated circuits. Using the revised sys-
tem requires an additional remote circuit on the tractor.
The figure below identifies affected existing components. Note: This hydraulic update is optional. Do not update
the hydraulic system unless the tractor has an
available additional remote circuit.

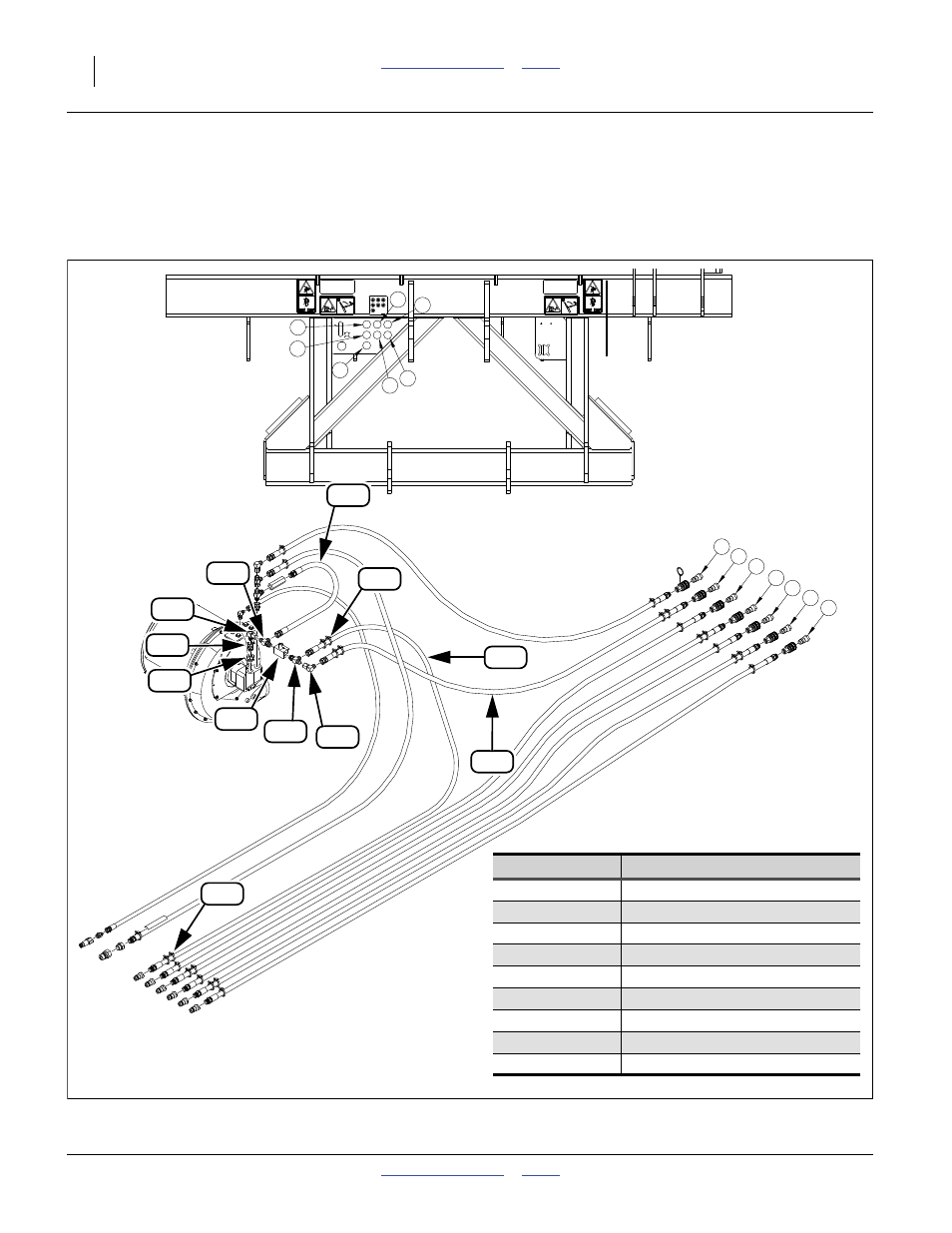

Figure 49
Existing Cart Hydraulics
Q0107
A
B
G
C
D
F
E
A
B
C
D
E
G
F
207
209
214
Existing Parts
c/o Part Description
161 800-301C CABLE TIE 2 DIA MIN - YLW
207 810-345C VALVE 90 DEGREE SHUT-OFF
209 811-080C TE 3/4MJIC 3/4MORB 3/4MJIC
210 811-150C EL 3/4FJIC 3/4MJIC
211 811-195C HH1/2R1 028 3/4FJIC 3/4MORB
213 811-324C AD 3/4MORB 3/4FJIC
214 811-512C HH1/2R2 219 3/4FJIC 3/4MORB
223 841-002C AD 1 1/16MORB 3/4FORB
228 841-480C HH1/2R2 084 3/4FJIC 3/4MORB
161
161
210
228
210
213
209
223
211
