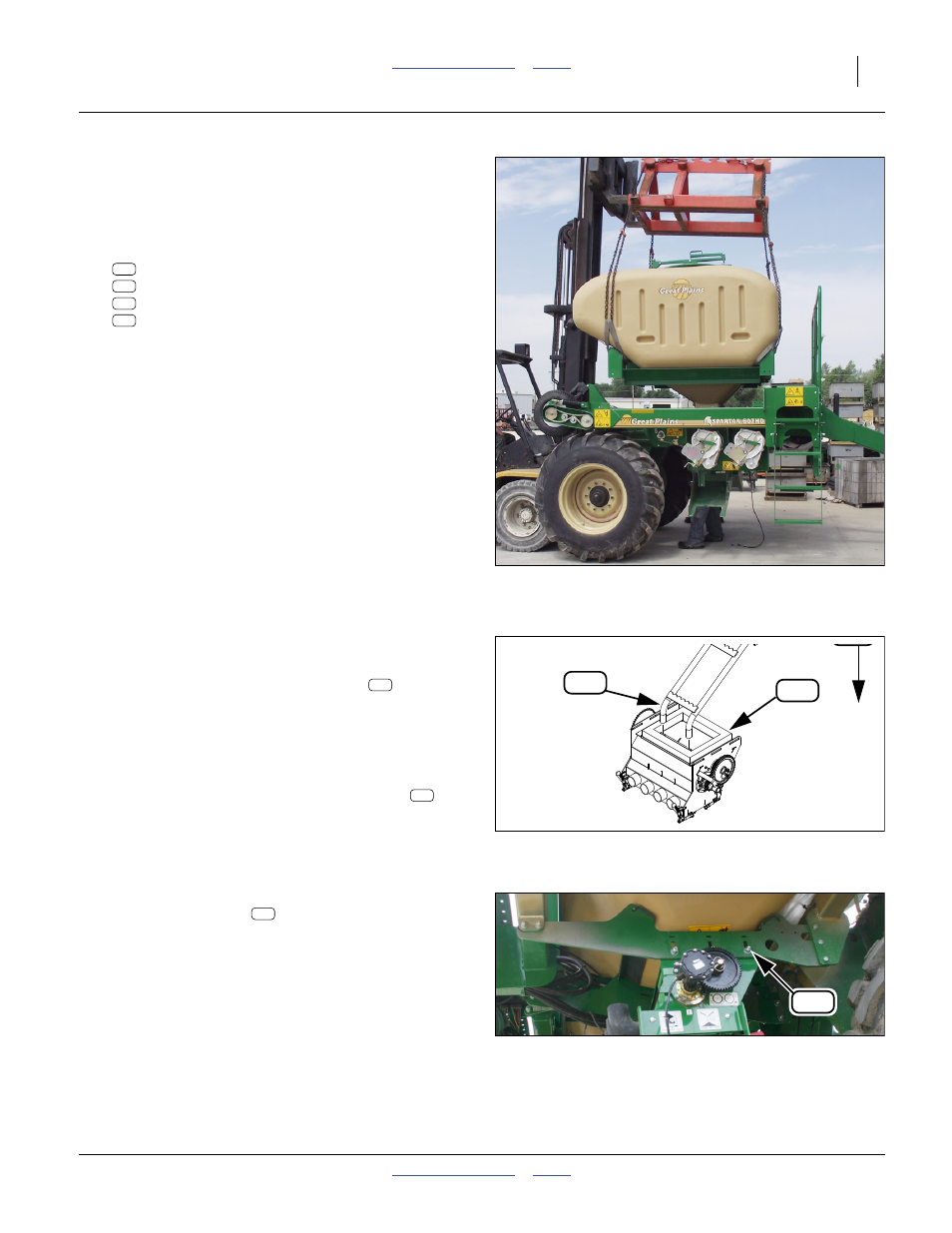

Re-Install Hoppers
Refer to Figure 51
185. Hoist the hopper sub-frame back into its original
position.
186. Select eight sets saved:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
804-017C WASHER FLAT 1/2 USS PLT
802-082C HHCS 1/2-13X1 3/4 GR5
Secure the hopper sub-frame to the cart frame.
Align Meters
Refer to Figure 52
187. Raise each meter until the foam seal
contacts
the hopper flange.
188. Adjust the front-to-rear position of the meter until
the meter inlet is centered under the hopper open-
ing.
Check that the hopper vent structure tubes
mate with the vent tubes (not shown) in the meters.
189. Raise the meter another 1 to 2 cm (0.4 to 0.8 in.) to
partially compress the seal, providing an air-tight
connection.
Refer to Figure 53
190. Tighten the six nuts
at the meter mounts.
Figure 51
Re-Mount Hoppers
Q0102
177
187
188
167
Figure 52
Vent Alignment
Q0111
950
127
976
127
Figure 53
Hopper on Updated Meter
Q0110
950
950
