General Information
These instructions explain how to update multiple drill
components. The kit improves drill durability in extremely
challenging conditions, and adds some convenience fea-
tures.
One kit updates drill. Applies to models:
NTA607HD-4006 Option 72
NTA2007HD-4006 Option 72
These instructions apply to an installation of:
• This kit applies only to dual-hopper (Option 72) drills.
It does apply to single-hopper models (whether single
150 bu or single 82 bu with liquid fertilizer tanks). The
kit is not fully documented for 64-row drills.
• This kit is not required for drills manufactured after
May 2011. If the lower pull-bars are present, kit
features are already installed.
• This kit is not required for any NTA607- or NTA2007-
(non-HD) drills.
Related Documents
Have your drill Operator and Parts manuals available for
implement operations and parts identification. Have the
Pre-Delivery manual available for disassembly.
All of the above drill manuals, including Pre-Delivery, are
available as PDF files on the Great Plains web site:
Manuals > No-Till Drills > No-Till Air Drills >
NTA607HD & NTA2007HD No-Till Air Drill
Notations and Conventions
Call-Outs
Kit Kit Description
166-369A 6 Meter No-Till Air Drill

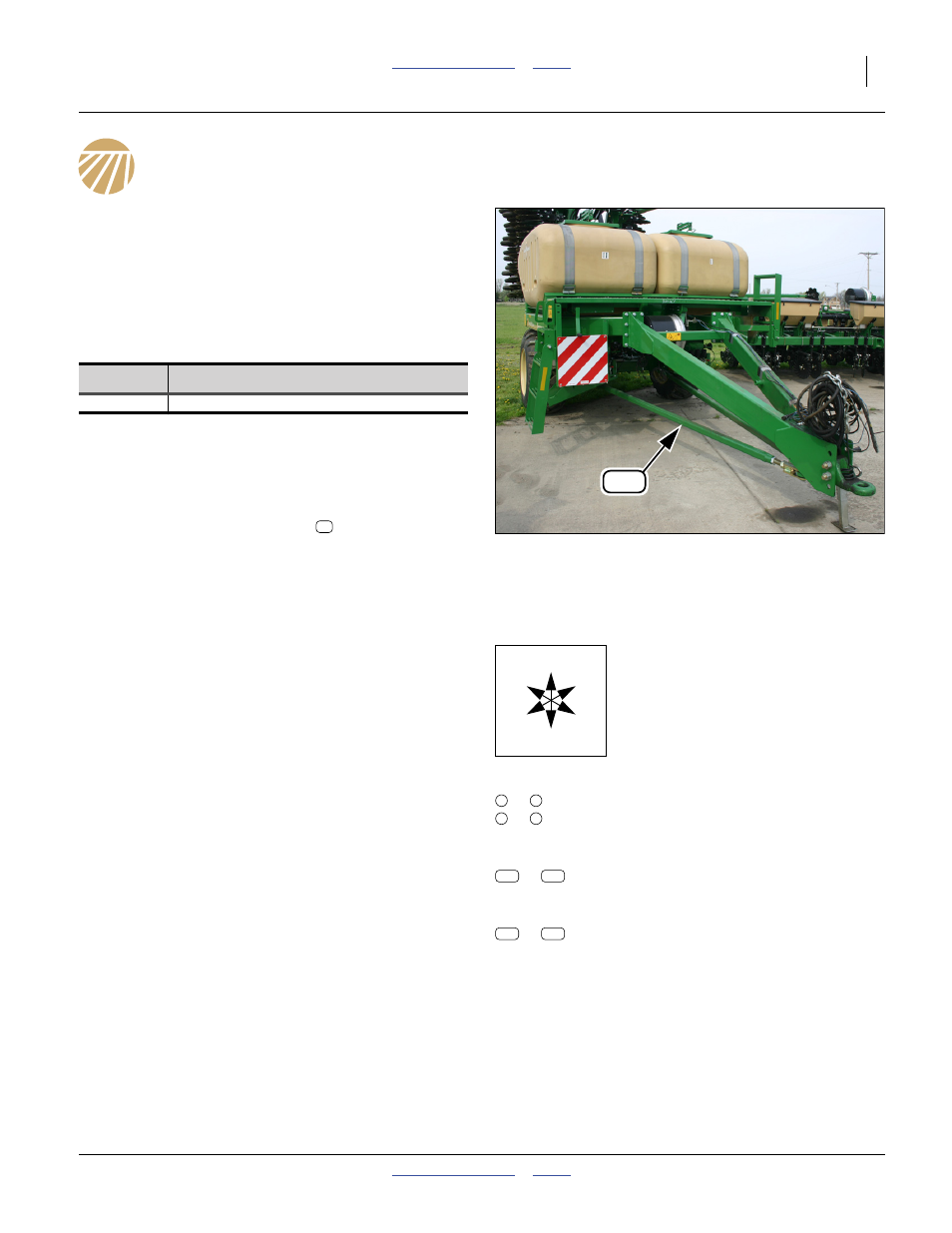

Figure 1
Kit Installed
32109
916
91
166-283M NTA607HD/2007HD Operator
166-283P NTA607HD/2007HD Parts
110011512 ACC (Air Cart Control) User Level 2/3
110011544 NTA607HD Quick Setup Guide
166-283Q NTA607HD/2007HD Pre-Delivery
113-850M 20ft Swing-Arm Marker Installation
“Left”/LH and “Right”/RH are facing in
the direction of machine travel. An ori-
entation rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
to
to Single-digit or single-letter callouts identify
components in the currently referenced
Figure. These numbers may be reused for
different items from page to page.
to Three-digit callouts in the range 101 to 239
reference existing parts from the list on
page 90.
to Three-digit callouts in the range 900 to 982
reference new parts from the list on page 94.
U
D
L
R
B
F
1 9
a z
101 239
900 982
