INSTALLING THE AT30
6
1.5.2. Wall-Mounting the AT30 (Style-5018 enclosure only)
AT30 battery chargers housed in the floor-mounted Style-5018 enclosure
can be wall-mounted. You do not need to modify the standard Style-5018
enclosure for wall mounting, but a special wall-mounting kit (
EI5008-00)
is required. For kit availability see ordering information in Appendix B on
page 65. The kit includes two (2) mounting brackets, hardware and special
instructions for the wall mounting procedure. In planning for wall
mounting of the AT30, you should consider the following:
1. The wall must be strong enough to properly support the weight of the AT30.
The weight of your AT30 may be different from the table value, depending
on options or accessories you ordered. See the Weight Table located in
Section 1.4 on page 3.
2. Placement of conduit entrances. Note the standard pre-fab conduit knockouts
located on the sides of the charger. See the outline drawing (
JE5085-00) in
Appendix C, on Page 66.
3. The location:
•
Should be free of drips and splatter. If dripping liquids are a problem,
install a drip shield kit. For kit availability see ordering information in
Appendix B on page 65.
•
Should be between 32 and 122 °F / 0 and 50 °C, with relative humidity
between 5 and 95% non-condensing.
•
Must be free of flammable or explosive materials.
4. Maintain at least 6in / 152mm of free air on top, bottom and both sides of the
enclosure for air cooling.
5. Allow 36in / 914mm front clearance for access to the charger for operation
and maintenance.
PROCEDURE
1. Install eight (8) 0.25in / 6.4mm bolts (not
supplied), rated to support the AT30
weight plus a safety factor of at least two
(2) times, onto the wall.

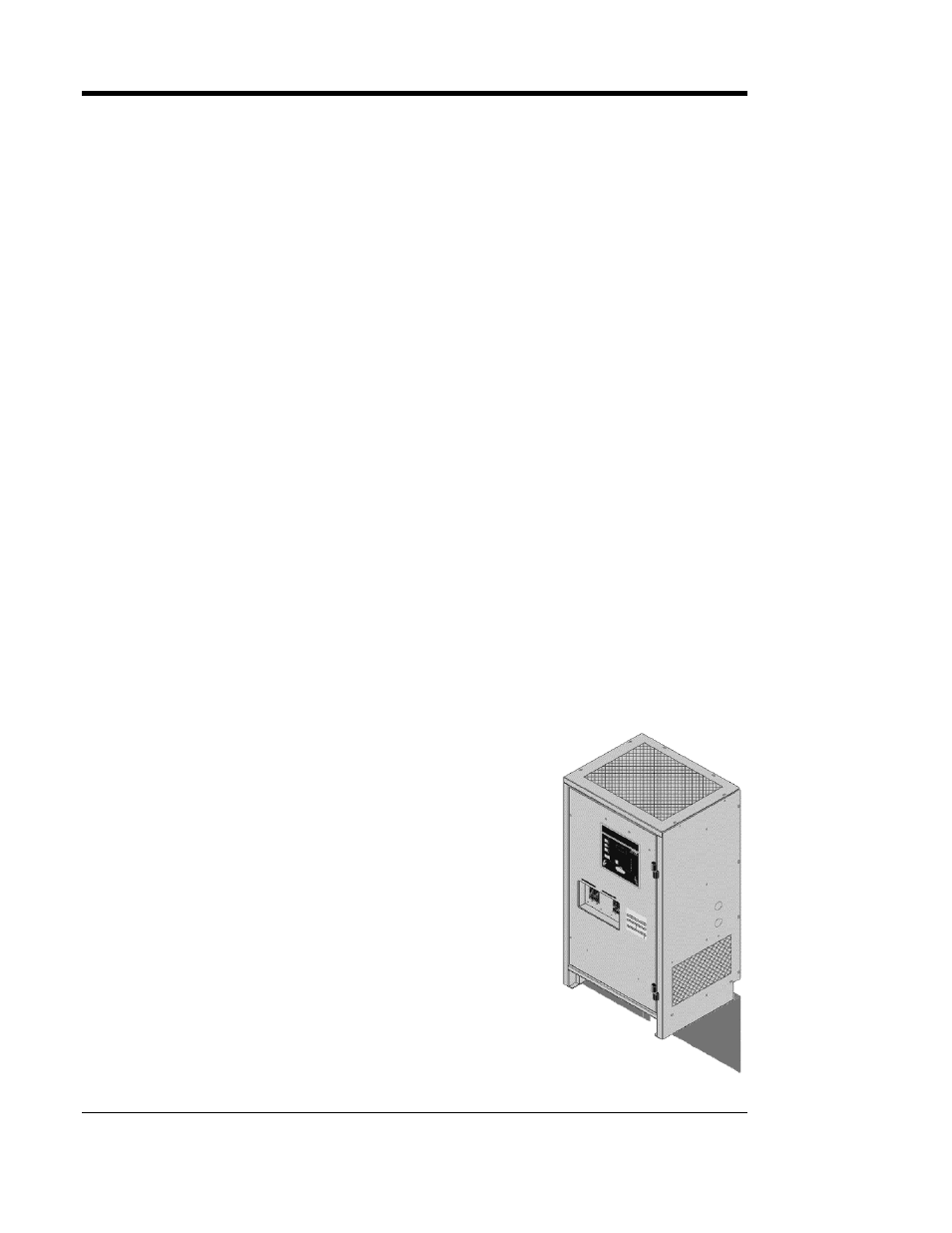

2. Place the AT30 Style-5018 enclosure onto
the mounted triangular brackets.
3. Use the supplied 0.25in / 6.4mm hardware
to mount the enclosure to the wall-
mounting brackets and tighten securely.
4. See the diagram on the opposite page for
the wall-mounted Style-5018 enclosure
footprint and mounting pattern.
5. Dimensions are in/mm.
